Attributes
originalBrand Name

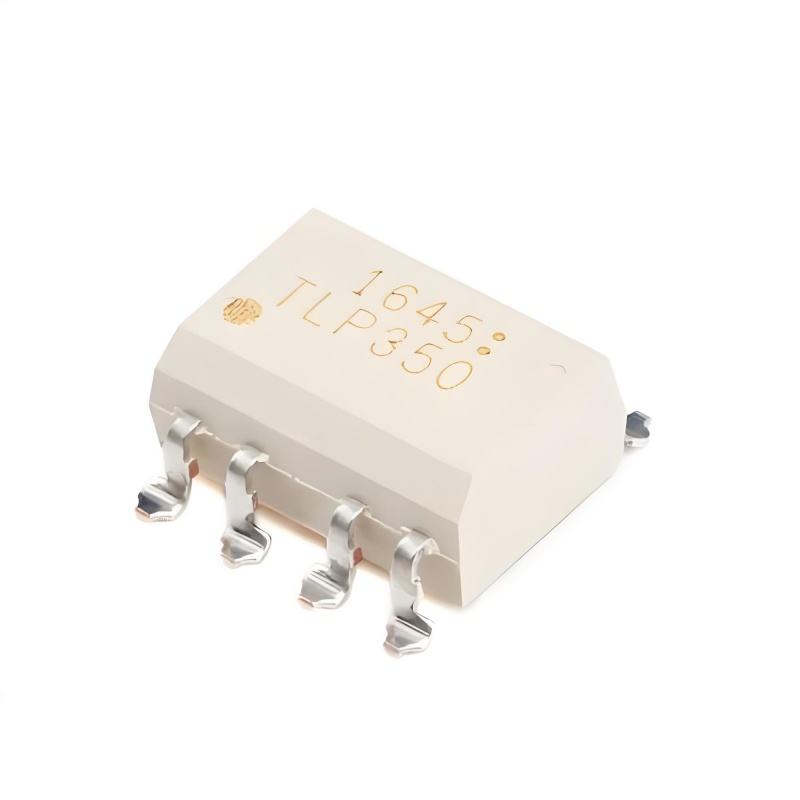

TLP350(TP1,F)Model Number
ChinaPlace of Origin
OPTOISO 3.75KV 1CH GATE DVR 8SMDDescription
Industrial Inverters, Air Conditioner InvertersApplication
Buffer logic type (totem pole output)Features
Manufacturer Product Number:TLP350(TP1,F)
Manufacturer:Toshiba Semiconductor and Storage
Category:Isolators Isolators - Gate Drivers
Mfr:Toshiba Semiconductor and Storage
Part Status:Obsolete
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Rise / Fall Time (Typ):15ns, 8ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.6V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
