Attributes
27mmClamp Opening Size
NAMax. Ac Current
NAMax. DC Current
600V AC/DCMeasuring Voltage Range
Guangdong, ChinaPlace of Origin
TA811AModel Number
Brand Name:TASI
Dimensions:194*73*31mm
Display Type:Digital Only
Instrument Safety Rating:NA
Max. Ac Voltage:600 V
Max. DC Voltage:600 V
Measuring Capacitance Range:1nF~40000μF
Measuring Current Range:0.01A~600A AC
Measuring Inductance Range:N/A
Measuring Resistance Range:0.1Ω~40MΩ
Operating Temperature:0~40℃
Parameters Measured:AC Voltage, Frequency, Temperature, DC Voltage, Duty Cycle, Capacitance, Continuity, Diode, Resistance
Weight:177g

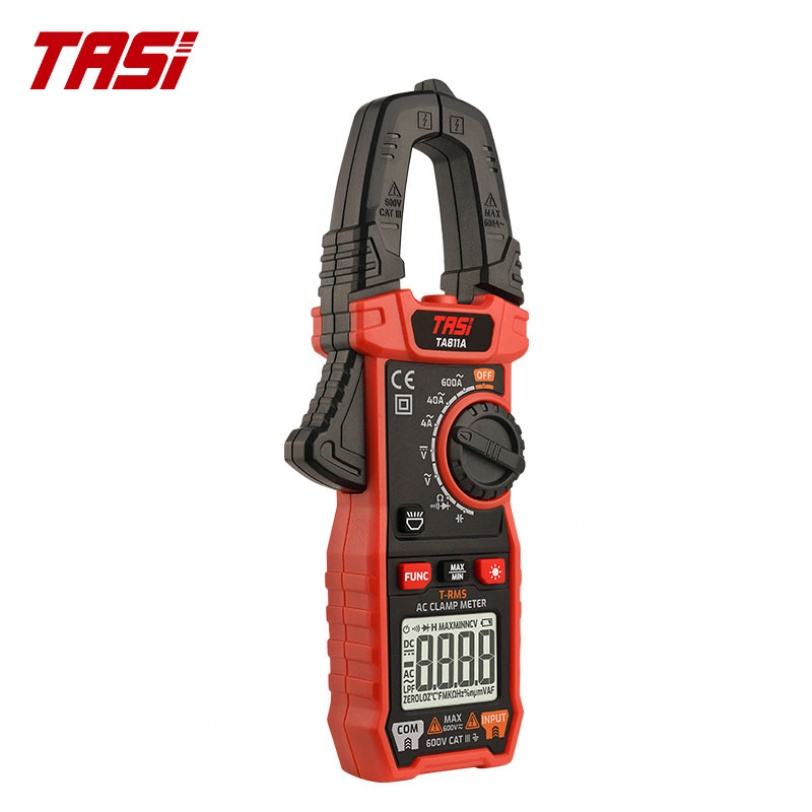

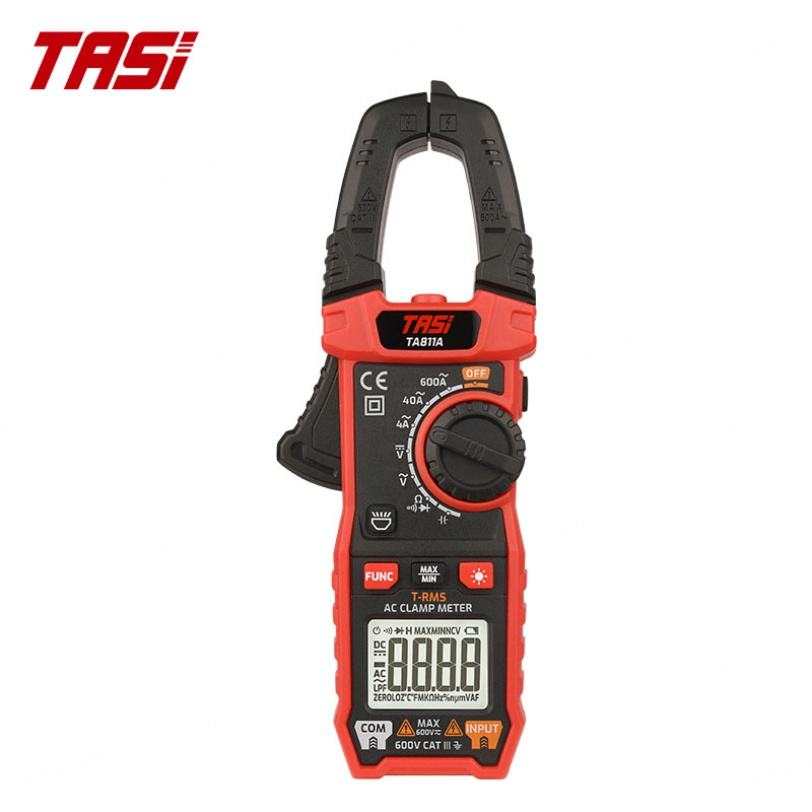

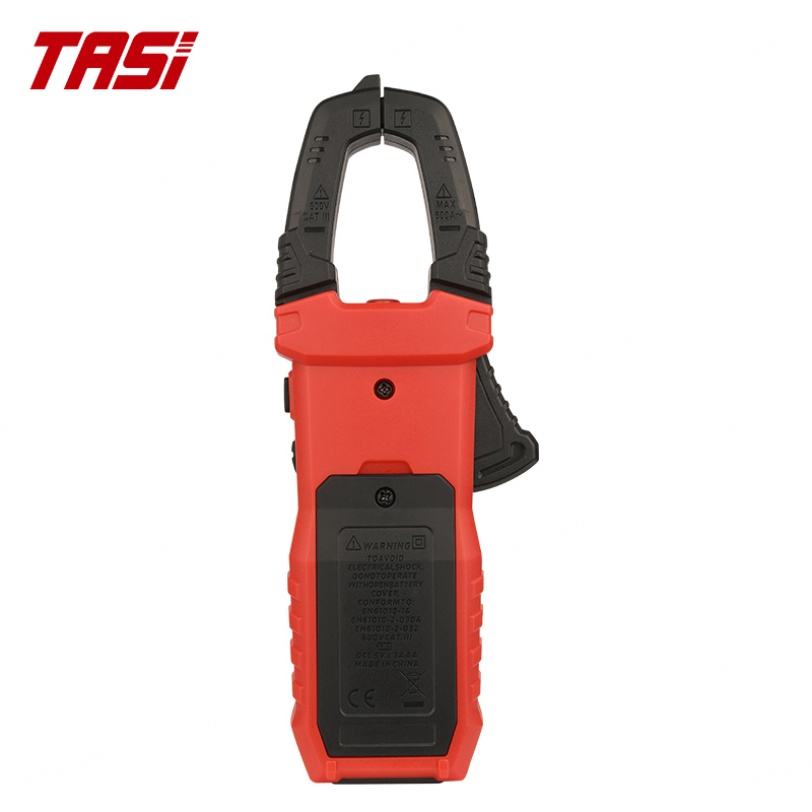

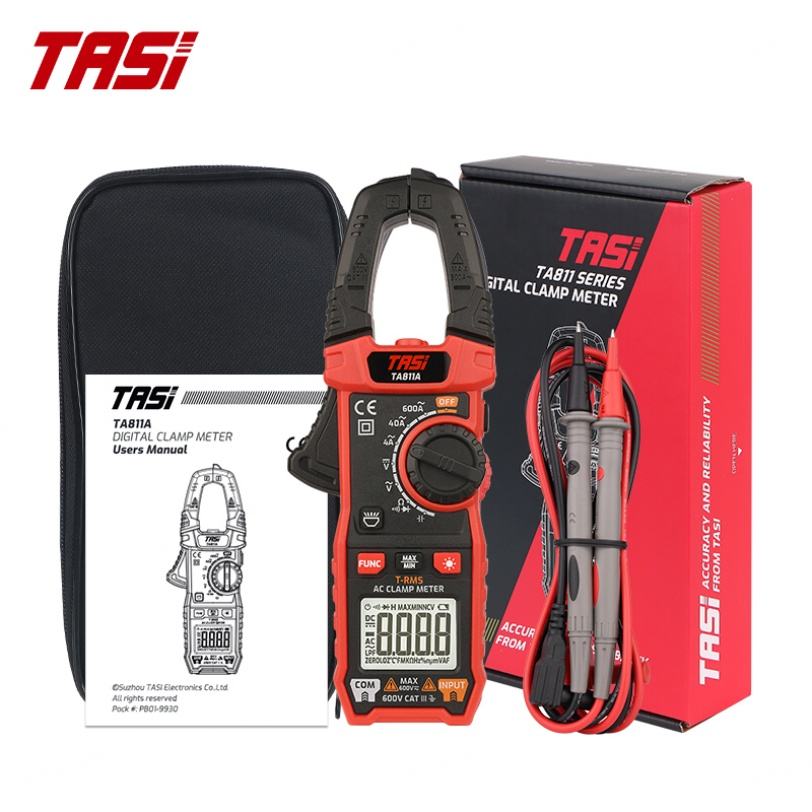

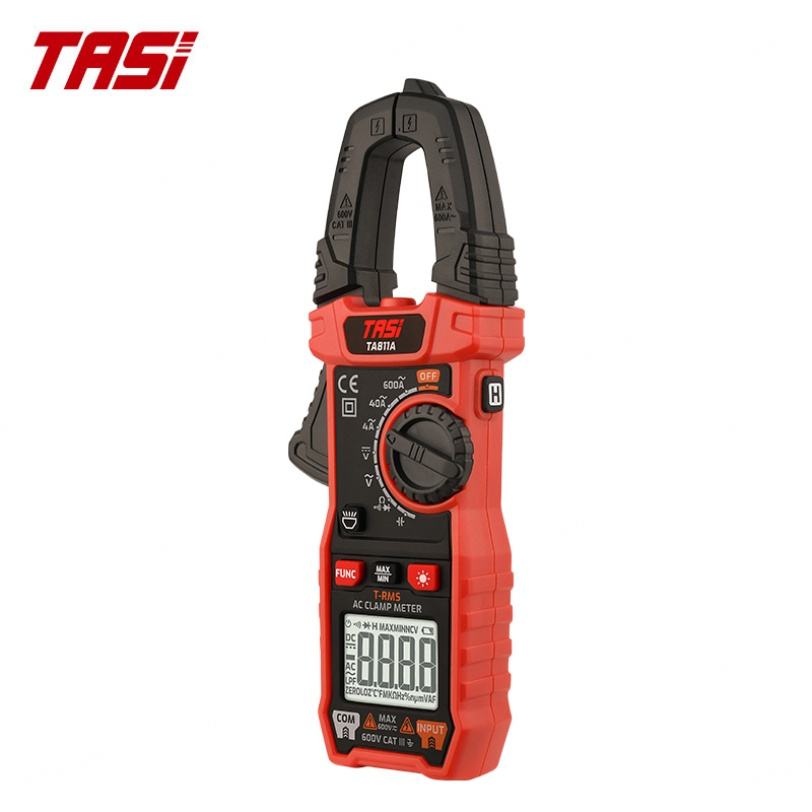

Product name:Clamp Meter
Model:TA811A
DC voltage:0.1mV~600V±(0.5%+5)
AC voltage:0.001V~600V±(0.8%+5)
AC current:0.6A~600A±(2.5%+5)
Resistance:0.1Ω~40MΩ±(1.0%+5)
Capacitance:1nF~4000μF±(4.0%+5)
Display Count:3999 Counts
Max/Min:Yes
Flashlight:Yes
