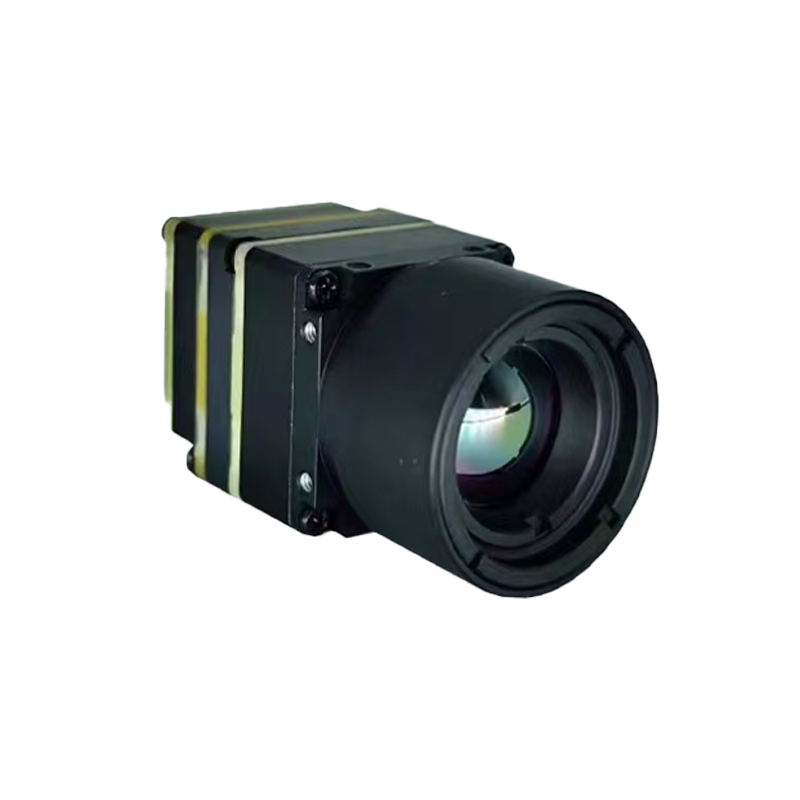

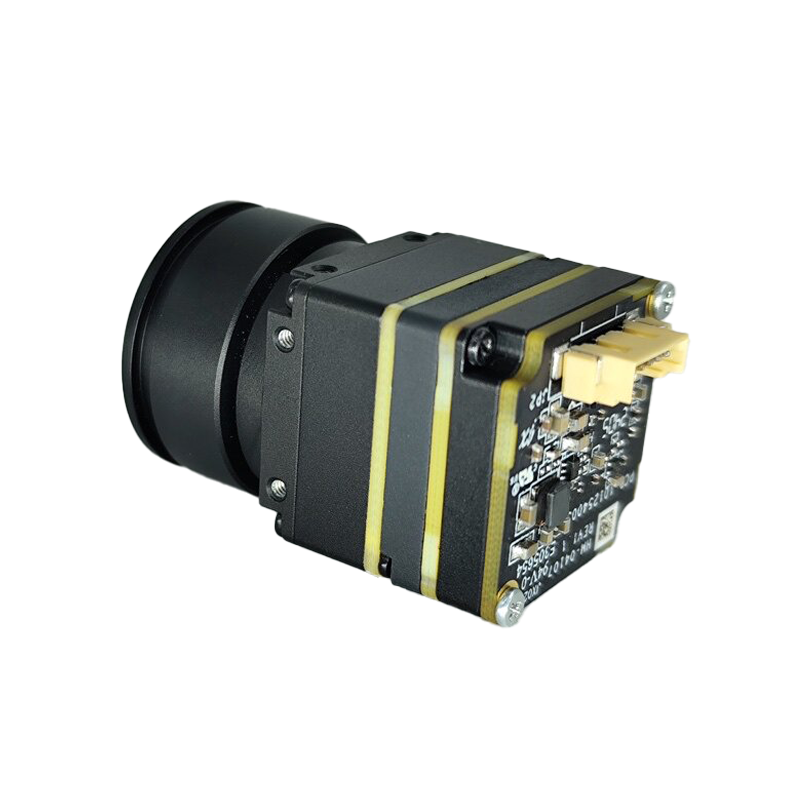

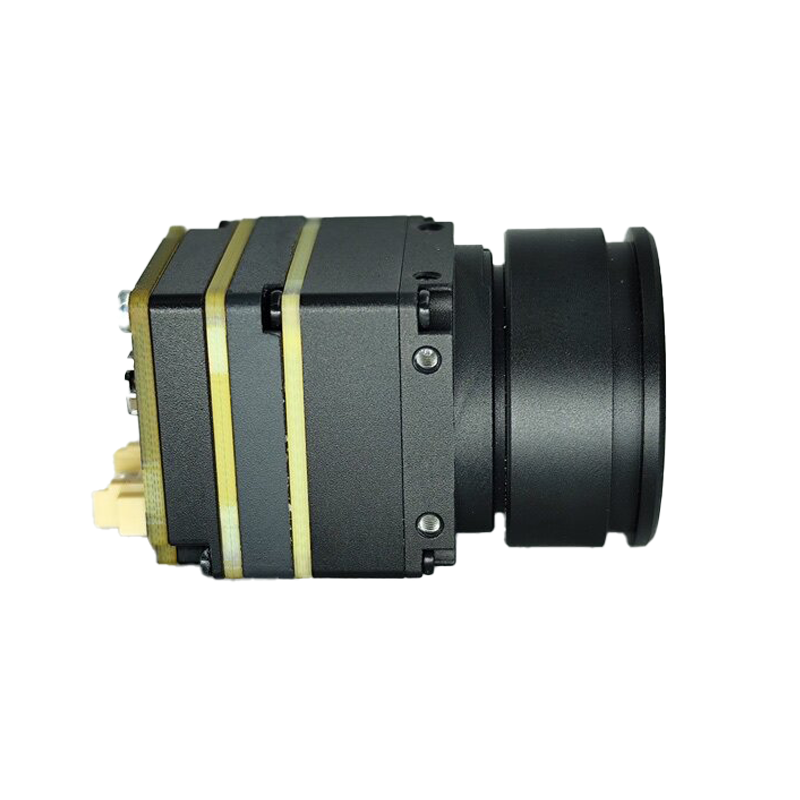

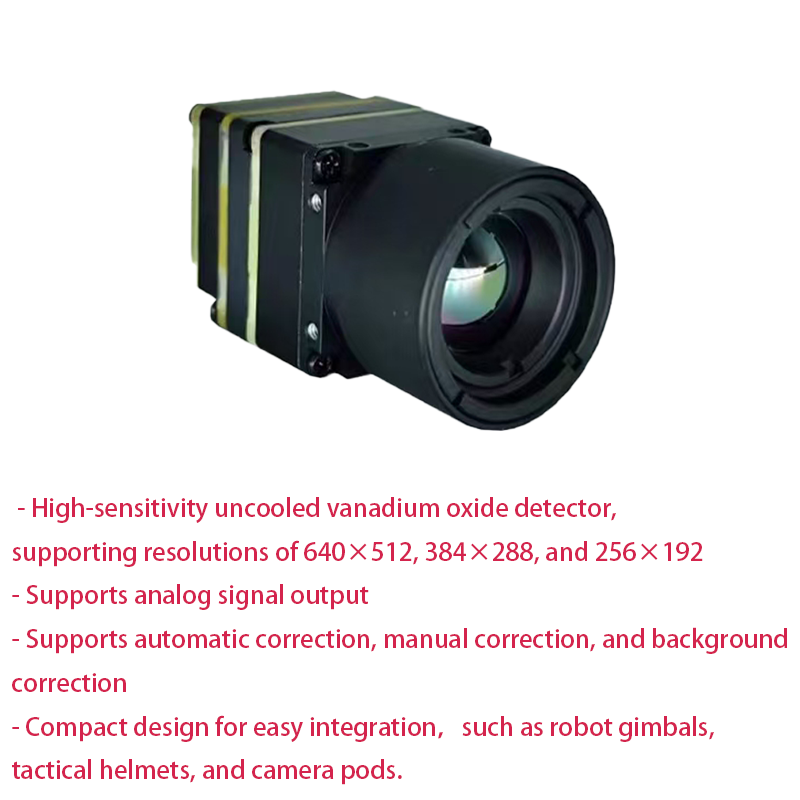

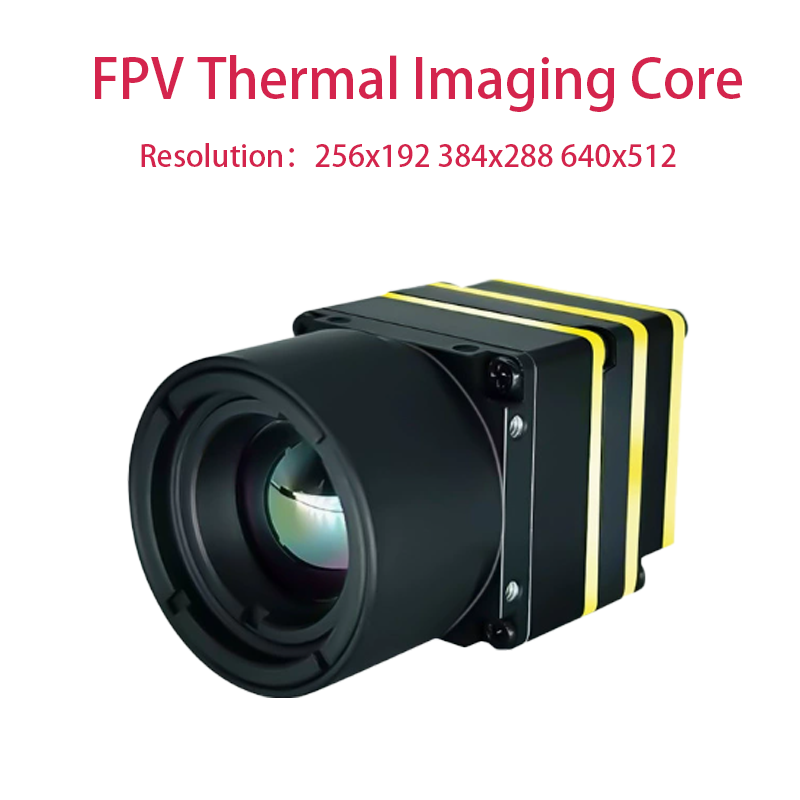

Thermal Imaging Camera Module 640x512 Uncooled Vanadium Oxide Detector Analog Output for Robot Gimbals Tactical Helmets
No reviews yet
Attributes
640x512Resolution
/Storage
/Video Compression Format
DZ-MINIModel Number
otherBrand Name
Guangdong, ChinaPlace of Origin
Mounting Type:/
Description:High Definition Thermal Imaging Module
Application:Drone Thermal Imaging
Series:/
Size / Dimension:≤221mmx21mmx39mm
Sensor:/
Technology:CVBS Interface
Style:/
Feature:Security Monitoring
Field of View (FOV):48.3°(H) , 38.6°(V), 62.4°(D)
Interface:CVBS Interface
Maximum Image Size:640*512
NETD:≤40mK (@25°C, F#1.0)
MRAD (Spatial Resolution):1.2
Thermal Imaging Lens Focal Length:9.1mm
Minimum Focus Distance:2m
Maximum Aperture Value:F1.0
Defect Correction:Supported
Storage Temperature:-45°C ~ +75°C
Power Consumption:≤0.8W
Power Input:DC 5V-17V
Weight:≤23g
Image Denoising:Supported
Brightness Adjustment:Supported
Key attributes
Resolution
640x512
Storage
/
Video Compression Format
/
Model Number
DZ-MINI
Brand Name
other
Place of Origin
Guangdong, China
Mounting Type
/
Description
High Definition Thermal Imaging Module
Application
Drone Thermal Imaging
Series
/
Size / Dimension
≤221mmx21mmx39mm
Sensor
/
Technology
CVBS Interface
Style
/
Feature
Security Monitoring
Field of View (FOV)
48.3°(H) , 38.6°(V), 62.4°(D)
Interface
CVBS Interface
Maximum Image Size
640*512
NETD
≤40mK (@25°C, F#1.0)
MRAD (Spatial Resolution)
1.2
Thermal Imaging Lens Focal Length
9.1mm
Minimum Focus Distance
2m
Maximum Aperture Value
F1.0
Defect Correction
Supported
Storage Temperature
-45°C ~ +75°C
Power Consumption
≤0.8W
Power Input
DC 5V-17V
Weight
≤23g
Image Denoising
Supported
Brightness Adjustment
Supported
Packaging and delivery
Selling Units
Single item
Single package size
16.50X11.50X6.50 cm
Single gross weight
0.500 kg
