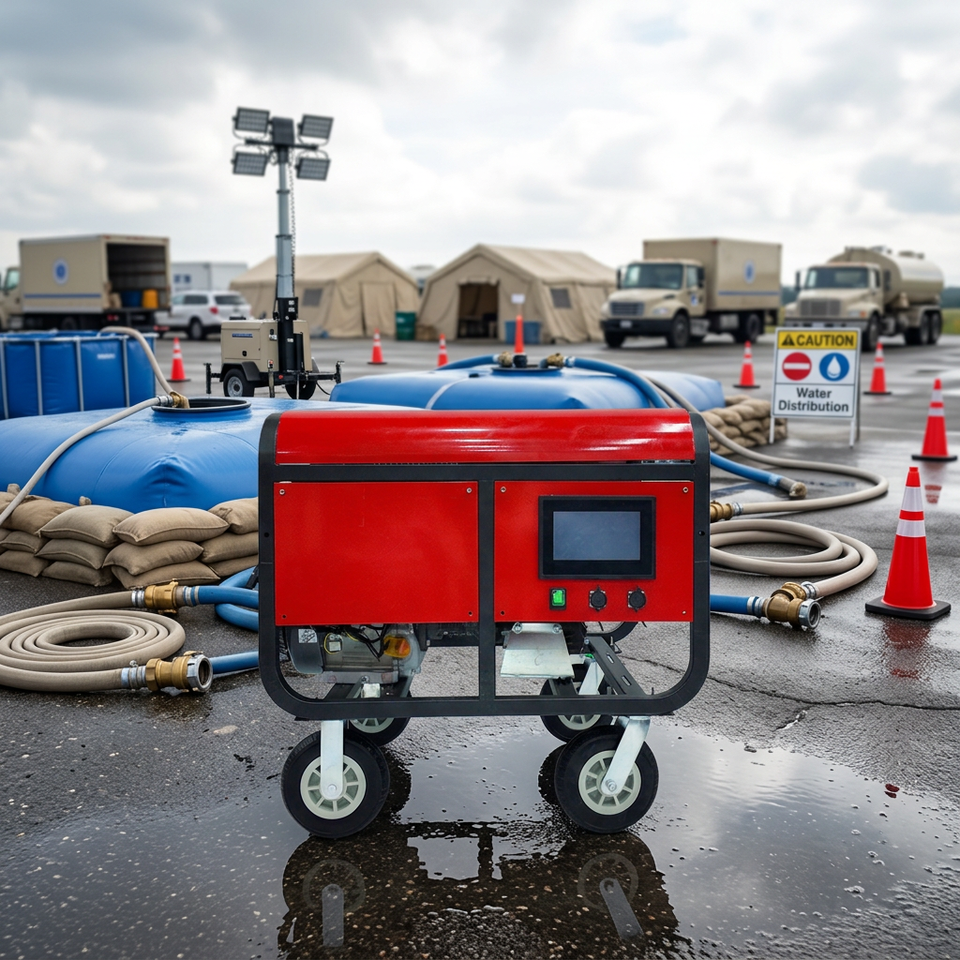

Timecore WBS-CM40 Emergency Diaphragm Water Pump 155L/min High Gasoline for and Temporary Supply WBS-CM40

No reviews yet
£4,58987
Minimum order quantity: 1 piece
Flow Rate
maximum head
type

Key attributes

application

Emergency Rescue / Temporary Water Supply

pressure

8.65 MPa (Max Working Pressure)

customized support

ODM, OEM

place of origin

China

power source

Gasoline-Powered

warranty

Negotiations between the two parties

Shipping
Select shipping

Key attributes

application
Emergency Rescue / Temporary Water Supply
pressure
8.65 MPa (Max Working Pressure)
customized support
ODM, OEM
place of origin
China
power source
Gasoline-Powered
warranty
Negotiations between the two parties
model number
WBS-CM40
brand name
timecore
Applicable temperature
-10.C to 60.C
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Connection Type
Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Control Method
Electric Start + Manual Pull Start
Discharge Pipe Size
40 mm (1.6")
Filter material
Stainless Steel Mesh
Flow Meter Specification
Integrated Pressure Gauge
Hardness
High-Impact Resistant
horsepower
15HP (21kW Optional)
Impeller Material
Wear-Resistant Ceramic Alloy
Import Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Max Flow Rate
155 L/min
Max Pressure
8.65 MPa
Membrane material
Synthetic Diaphragm
motor

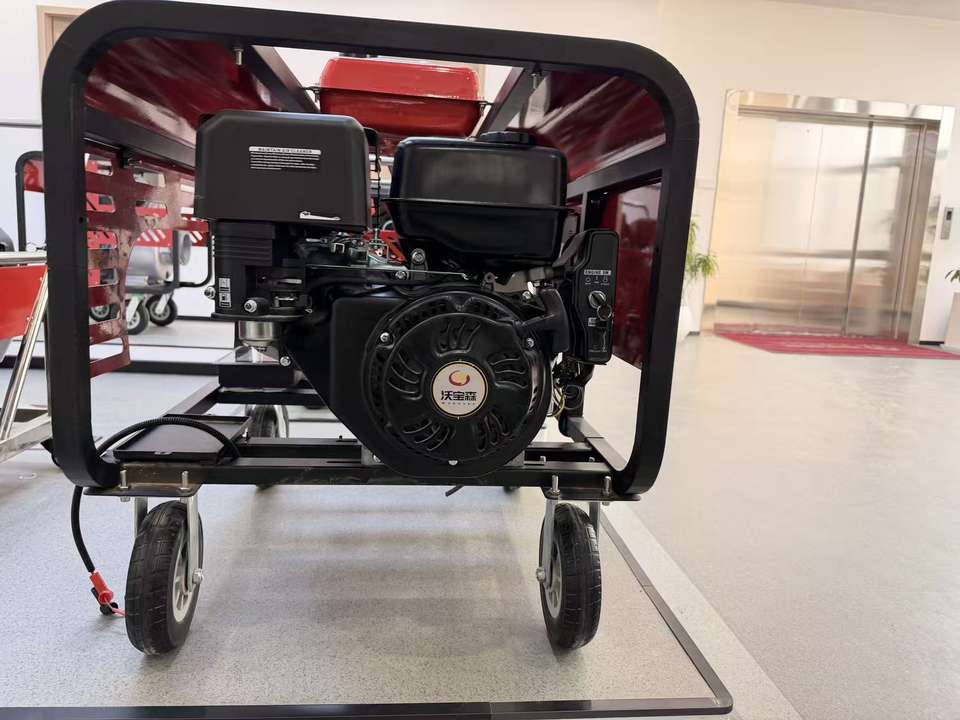

4-Stroke Forced Air-Cooled Gasoline Engine
outlet size
40 mm (1.6")
Outlet Type
High-Pressure Nozzle (20 mm)
Outlet Water Oil Content
0% (Oil-Free Pumping)
Sealing Material
FKM
structure
Triple-Cylinder Hydraulic Diaphragm Pump
suction head
≥7 m
Surface Treatment
Powder-Coated (Red Oxidation Layer)
Material
Aluminum Alloy + Stainless Steel + FKM Seals
Flow Rate
155 L/min (Max) / 147 L/min (Rated)

Packaging and delivery

Selling Units
Single item
Single package size
85X55X70 cm
Single gross weight
120.0 kg

Lead time
