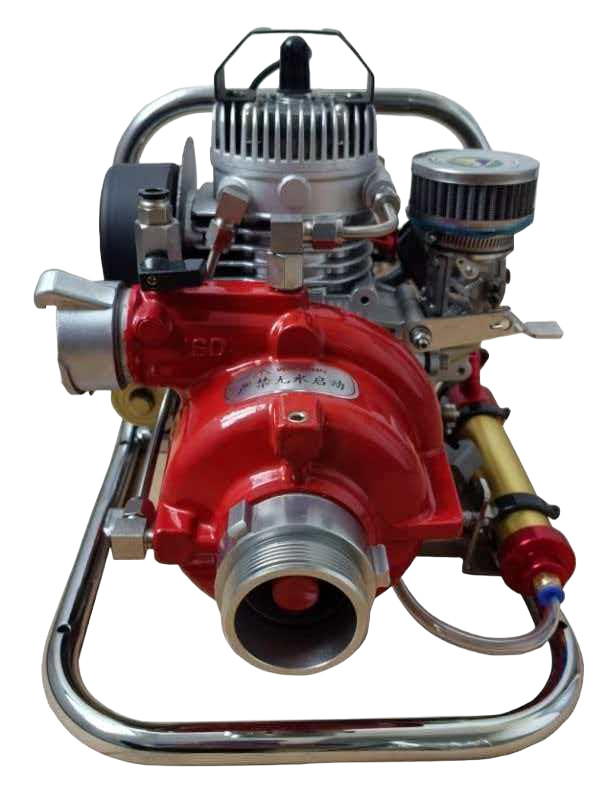

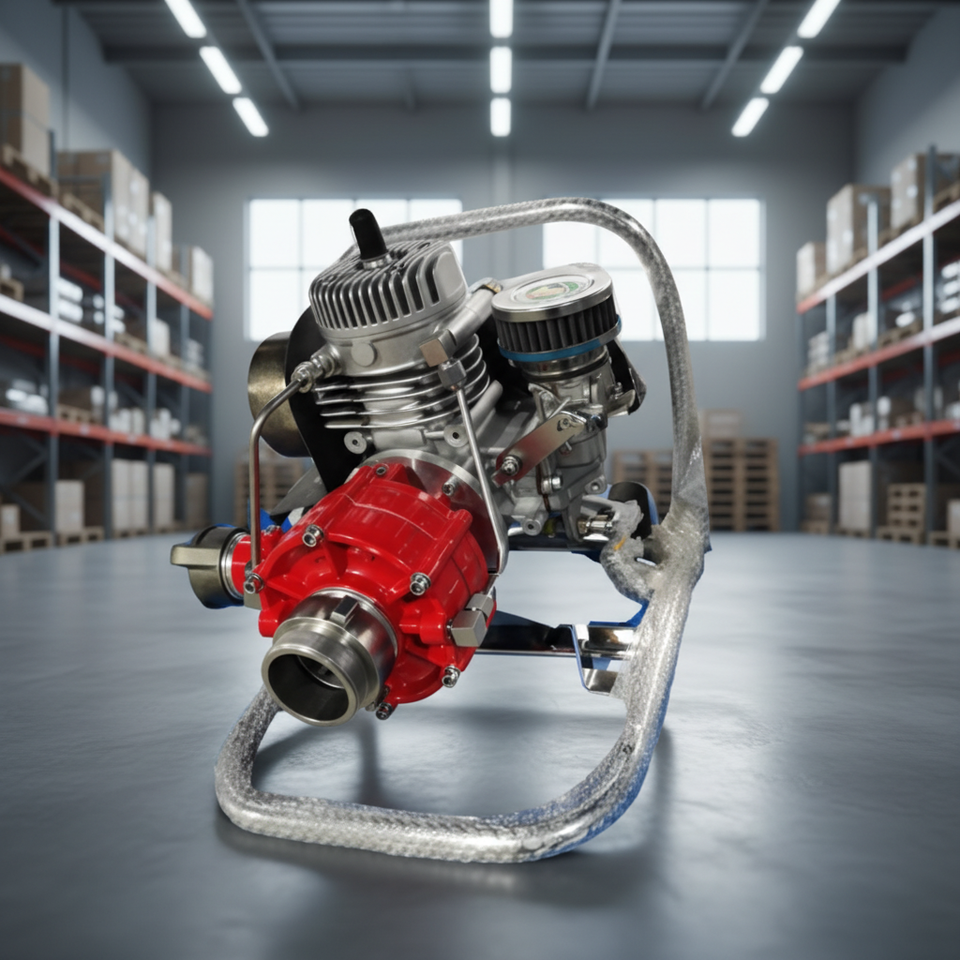

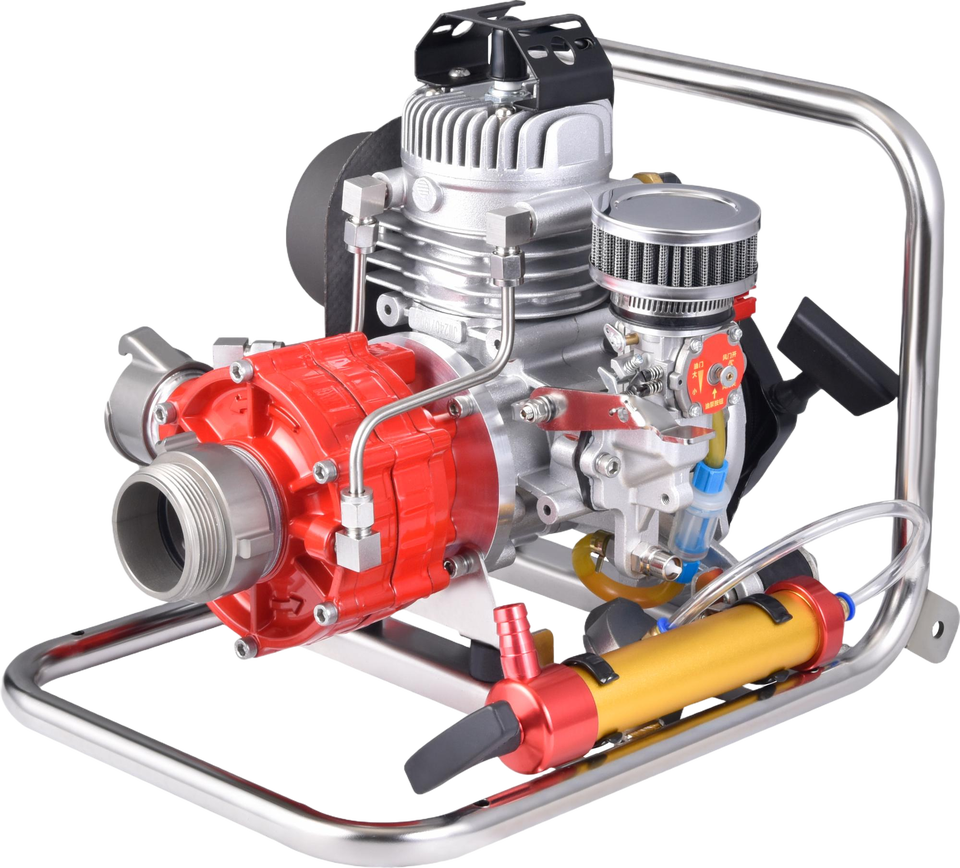

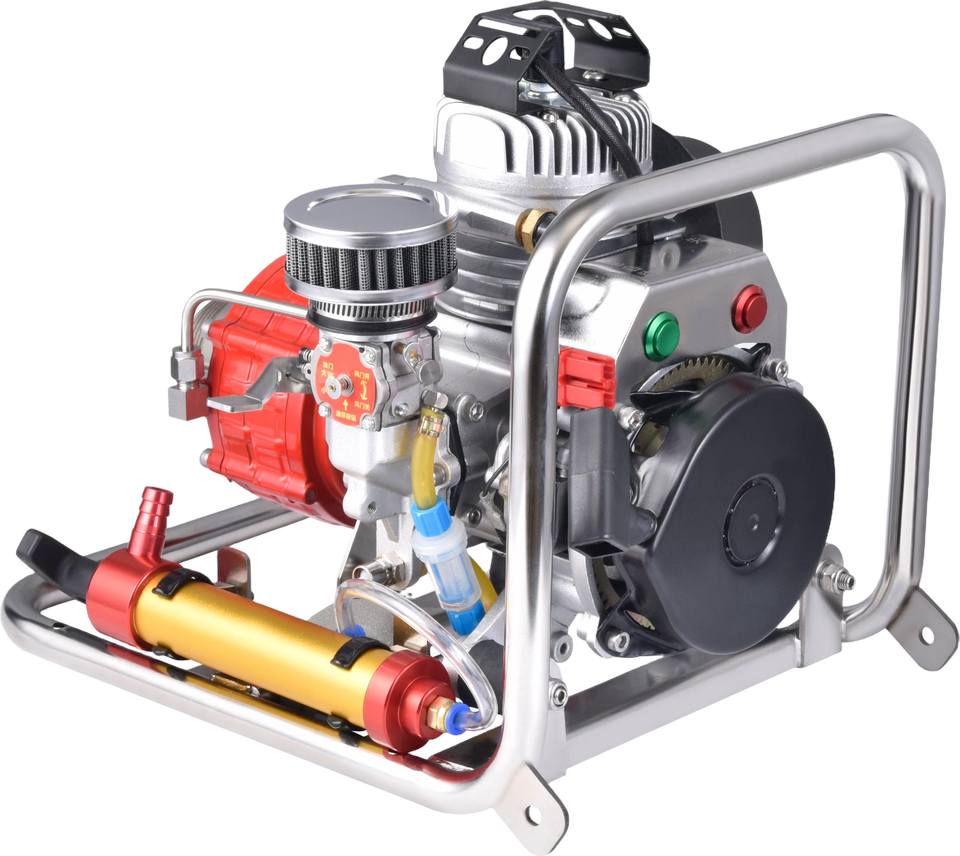

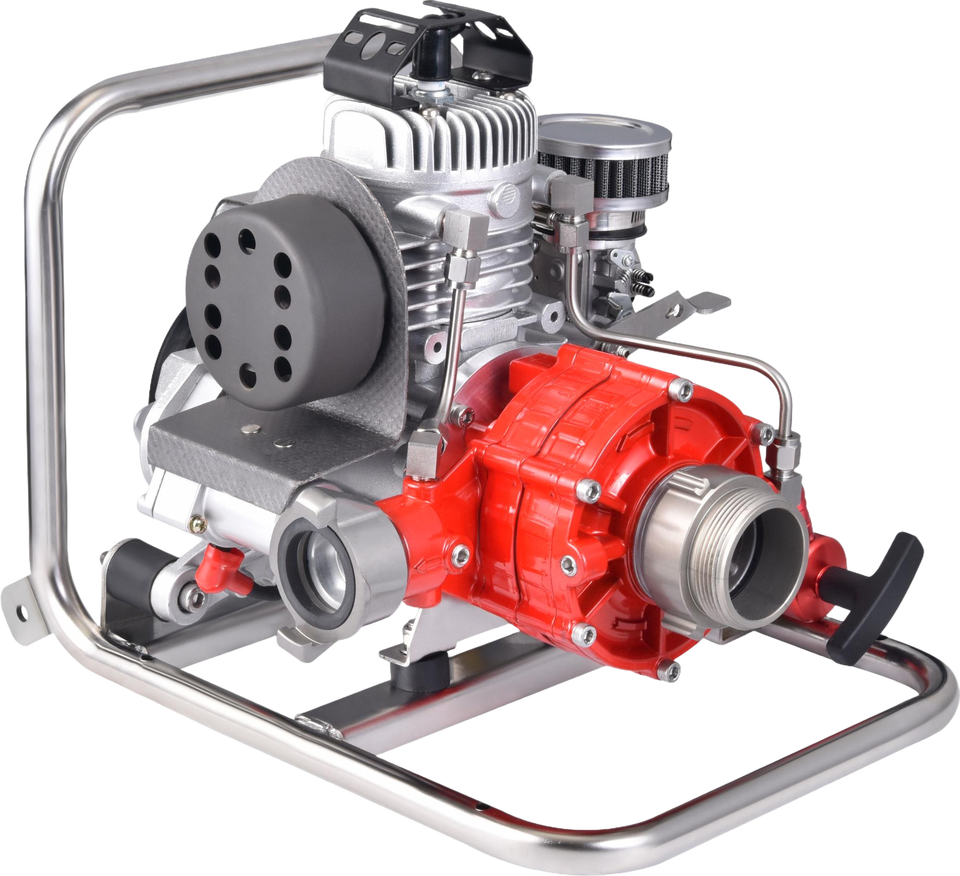

Timecore WBS-W18/5.7-2DS-2 Portable Agricultural Irrigation & Landscape Watering Pump 9HP 350L/min 1.8MPa Lightweight WBS-W18/5.

No reviews yet
£1,03925
Minimum order quantity: 20 pieces
Flow Rate
maximum head
type
Customization options
logo (Min. order: 50 pieces)

Key attributes

application

Agricultural Irrigation, Landscape Watering

pressure

1.8 MPa (Max Working Pressure)

customized support

ODM, OEM

place of origin

China

power source

Gasoline-Powered (2-Stroke Air-Cooled Engine)

warranty

Negotiations between the two parties

Shipping
Select shipping

Key attributes

application
Agricultural Irrigation, Landscape Watering
pressure
1.8 MPa (Max Working Pressure)
customized support
ODM, OEM
place of origin
China
power source
Gasoline-Powered (2-Stroke Air-Cooled Engine)
warranty
Negotiations between the two parties
model number
WBS-W18/5.7-2DS-2
brand name
timecore
Applicable temperature
-10.C to 60.C
Chemical Compatibility
Compatible with Water, Fertilizer Solutions
Connection Type
Flange Connection (50 mm Inlet / 40 mm Outlet)
Control Method
One-Key Electric Start + Manual Pull Start
Discharge Pipe Size
40 mm (1.6")
Displacement
180 cc
Filter material
Stainless Steel Mesh
Flow Meter Specification
Integrated Flow Meter
Hardness
High-Impact Resistant
horsepower
9HP (6.6kW)
Impeller Material
Wear-Resistant Ceramic Alloy
Import Size
50 mm (2.0")
Inlet Height
≥7 m (Suction Head)
Max Flow Rate
350 L/min
Max Pressure
1.8 MPa
Membrane material
Synthetic Resin
motor
2-Stroke Air-Cooled Gasoline Engine
outlet size
40 mm (1.6")
Outlet Type
High-Pressure Nozzle
Outlet Water Oil Content
0% (Oil-Free Pumping)
Sealing Material
FKM
structure
Two-Stage Centrifugal Pump
suction head
≥7 m
Surface Treatment
Powder-Coated
Material
Aluminum Alloy + Stainless Steel + Ceramic Compone
Flow Rate
350 L/min

Packaging and delivery

Selling Units
Single item
Single package size
38X26X15 cm
Single gross weight
13.0 kg
