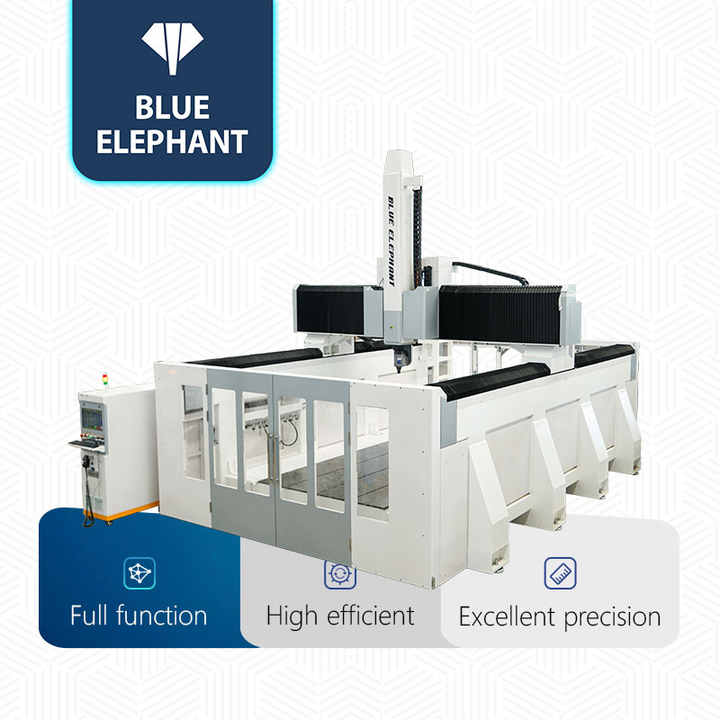

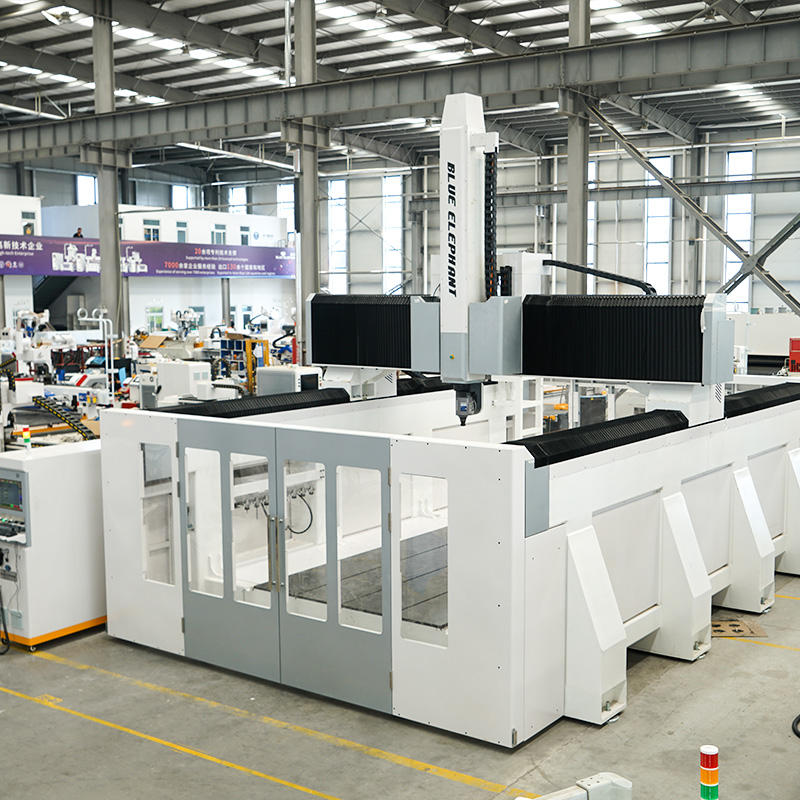

Top Rated 2040 Industrial ATC 5-Axis Machining Center 3D Foam Cutting Machine for EPS, Styrofoam, XPS
No reviews yet
Attributes
CNC Routermachine type
2000*4000Working Table Size(mm)
othernumber of axes

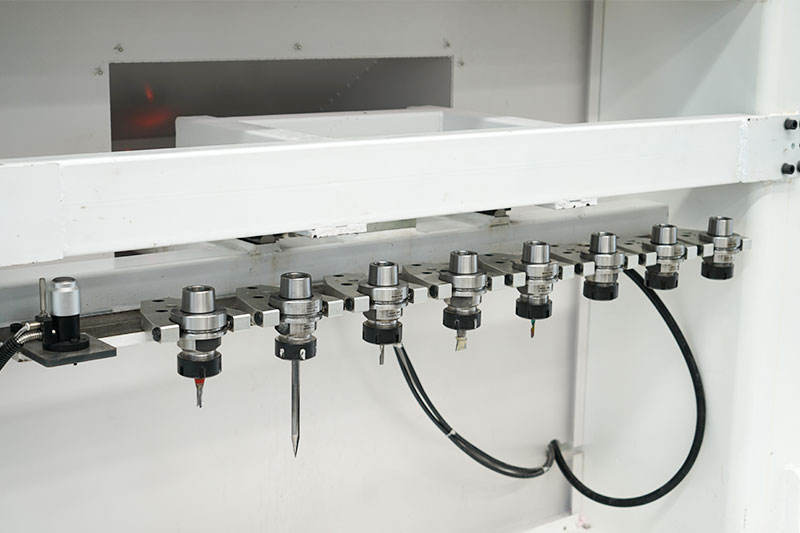

ATCNo. of Spindles
220Vvoltage
1 Yearwarranty
cnc or not:CNC
place of origin:Shandong, China
Power (kW):15
weight (kg):4000

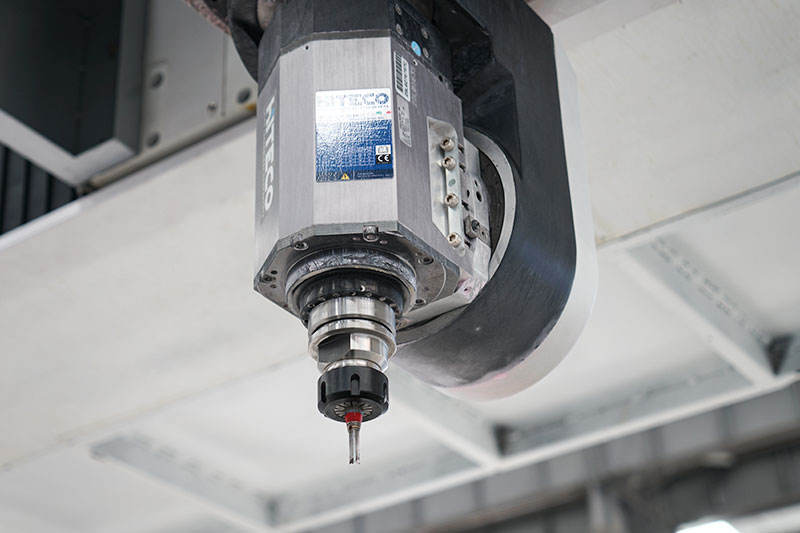

range of spindle speed(r.p.m):0 - 24000 rpm
positioning accuracy (mm):0.03 mm
travel (x axis)(mm):2000 mm
travel (y axis)(mm):4000 mm
repeatability (x/y/z) (mm):0.03 mm
Spindle Motor Power (kw):10
brand name:Blue Elephant
dimension(l*w*h):Other
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided

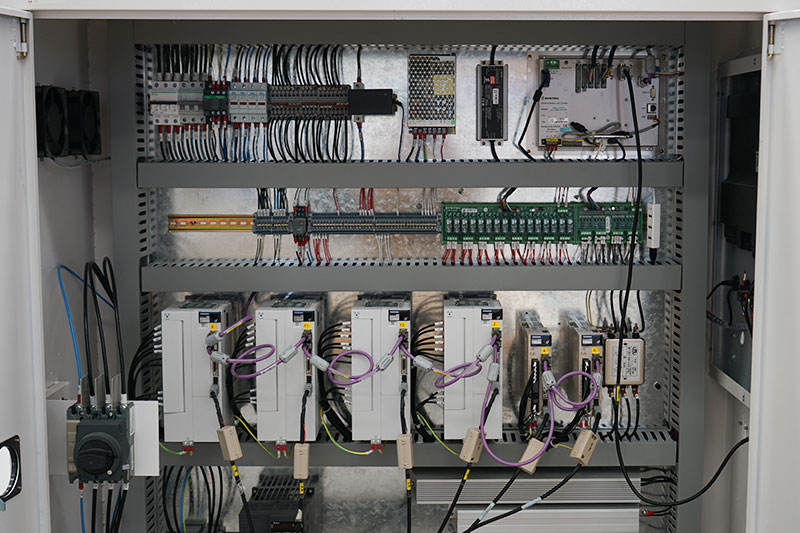

core components:Motor, PLC
Model:ELECNC2040ATC-5AXIS
Inverter:15kw

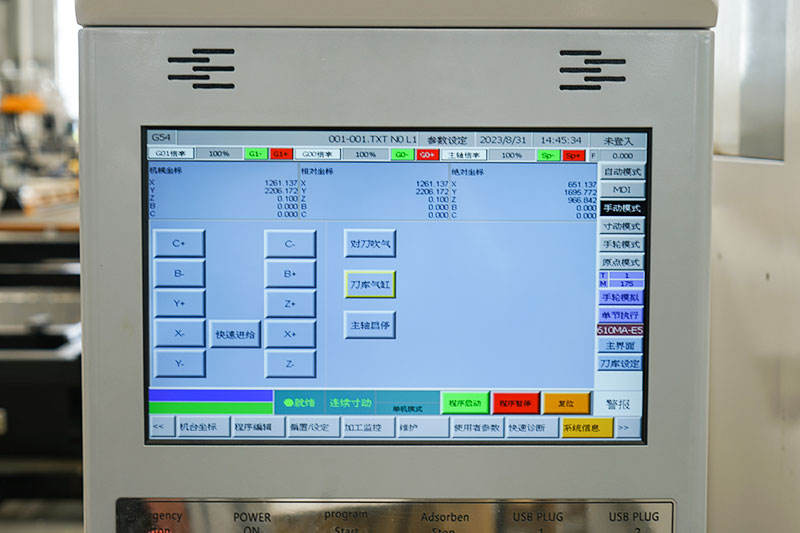

Control system:Taiwan Syntec 610-E5 5 axis control system
Working air pressure:0.8MPa
Command language:G Code
Traveling speed:60m/min
Working speed:0-15m/min
Re-positioning accuracy:±0.03mm
Working voltage:220V±10%, 3PH, 60HZ
Working accuracy:±0.03mm
Key attributes
machine type
CNC Router
Working Table Size(mm)
2000*4000
number of axes
other
No. of Spindles
ATC
voltage
220V
warranty
1 Year
key selling points
Multifunctional
core components
Motor, PLC
machinery test report
Provided
video outgoing-inspection
Provided
cnc or not
CNC
place of origin
Shandong, China
Power (kW)
15
weight (kg)
4000
range of spindle speed(r.p.m)
0 - 24000 rpm
positioning accuracy (mm)
0.03 mm
travel (x axis)(mm)
2000 mm
travel (y axis)(mm)
4000 mm
repeatability (x/y/z) (mm)
0.03 mm
Spindle Motor Power (kw)
10
brand name
Blue Elephant
dimension(l*w*h)
Other
Model
ELECNC2040ATC-5AXIS
Inverter
15kw
Control system
Taiwan Syntec 610-E5 5 axis control system
Working air pressure
0.8MPa
Command language
G Code
Traveling speed
60m/min
Working speed
0-15m/min
Re-positioning accuracy
±0.03mm
Working voltage
220V±10%, 3PH, 60HZ
Working accuracy
±0.03mm
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Customizable
1 - 4 sets
$70,000
5 - 14 sets
$66,000
>= 15 sets
$58,000
