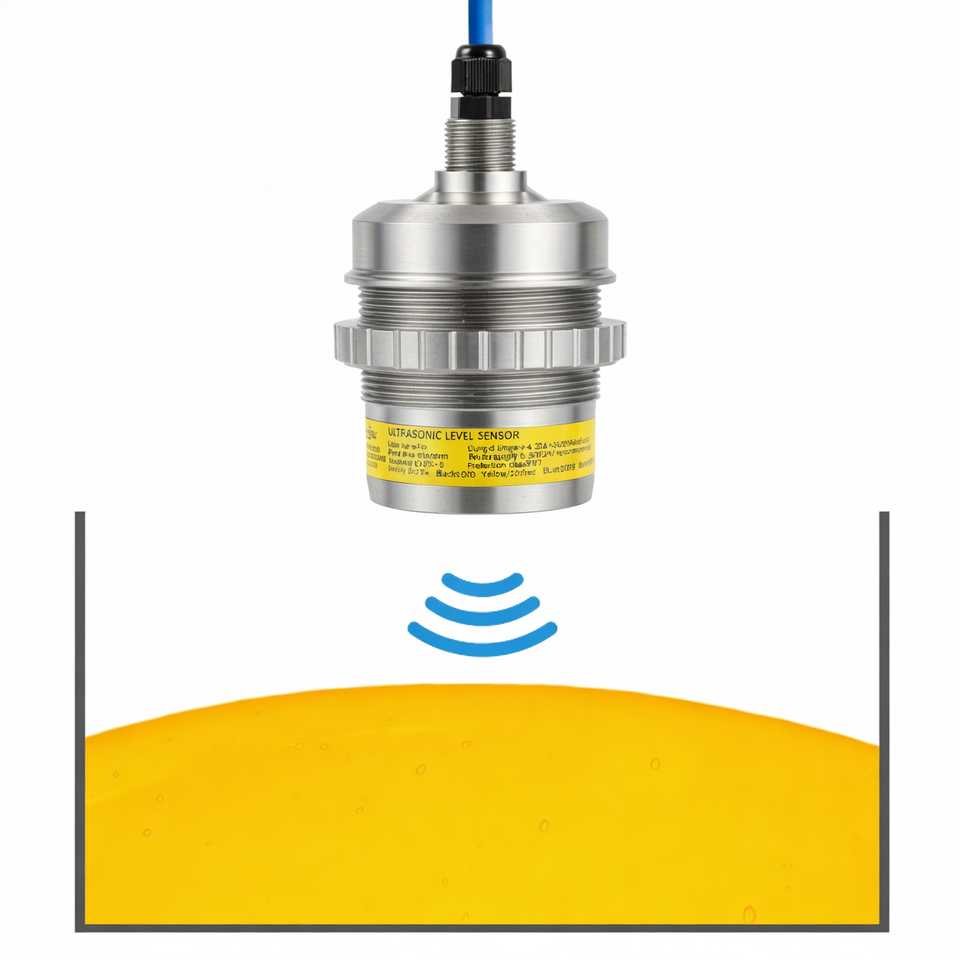

UE3003 Explosion Proof 2.5-10m Ultrasonic Fuel Oil Level Sensor with IP68 0.5% Accuracy RS485+4-20mA Output
No reviews yet
Attributes
Ultrasonic Level SensorType
±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)Accuracy
Polypropylene + glass fibermaterial
12 monthswarranty
OEM, ODMcustomized support
PMIbrand name
place of origin:Hunan, China
Measuring range:2.5m, 5m, 10m, others on request
Blind area:≤150mm(for 2.5m &5m ranges); ≤300mm(for 10m range)
Beam angle:12°
Output signal:RS485+4~20mA; RS485+0~5V
Power supply:10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature:-10~50℃(-40~80℃ by customized)
Installation mode:Nut clamping fixed installation, screw-in installation, M68*2
Product material:Polypropylene + glass fiber
IP rating:IP67 typical, IP68 by customized
Key attributes
Type
Ultrasonic Level Sensor
Accuracy
±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)
material
Polypropylene + glass fiber
warranty
12 months
customized support
OEM, ODM
brand name
PMI
place of origin
Hunan, China
Measuring range
2.5m, 5m, 10m, others on request
Blind area
≤150mm(for 2.5m &5m ranges); ≤300mm(for 10m range)
Beam angle
12°
Output signal
RS485+4~20mA; RS485+0~5V
Power supply
10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature
-10~50℃(-40~80℃ by customized)
Installation mode
Nut clamping fixed installation, screw-in installation, M68*2
Product material
Polypropylene + glass fiber
IP rating
IP67 typical, IP68 by customized
Packaging and delivery
Selling Units
Single item
Single package size
32X20X16 cm
Single gross weight
3.000 kg
Lead time
Product descriptions from the supplier
1 - 49 pieces
£14474
50 - 99 pieces
£12248
>= 100 pieces
£11802
Variations
Select nowMeasurement Range: 0-10m fuel, RS485+4-20mA, 7-30VDC/2A, 1m cable
0-10m fuel, RS485+4-20mA, 7-30VDC/2A, 1m cable
model number
UE3003
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
