UHF RFID Fixed Industrial Reader/Chief of the watch, raise the UHF antenna/Design optimization of UHF antenna sensors
No reviews yet
Attributes
wiredConnection
UHF RFID Fixed Industrial ReaderBrand Name
UHF RFID Fixed Industrial ReaderType
VF-747PModel Number
Guangdong, ChinaPlace of Origin
Impinj VM-64/68 E710 Dedicated RF Chip Module (USA)RF Core Chip
Air Interface Protoco:EPC Global UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B
Operating Frequency:902-928MHz or 865-868MHz
Output Powe:33dBm±1dBm
Output Power Adjustment:1dBm increments (configurable via VANCH software)
Receiver Sensitivity:<-85dBm
Tag Identification Peak Speed:>950 Hz
Tag RSSI:Support
Number of Antennas:4 or 8 external SMA antenna interfaces

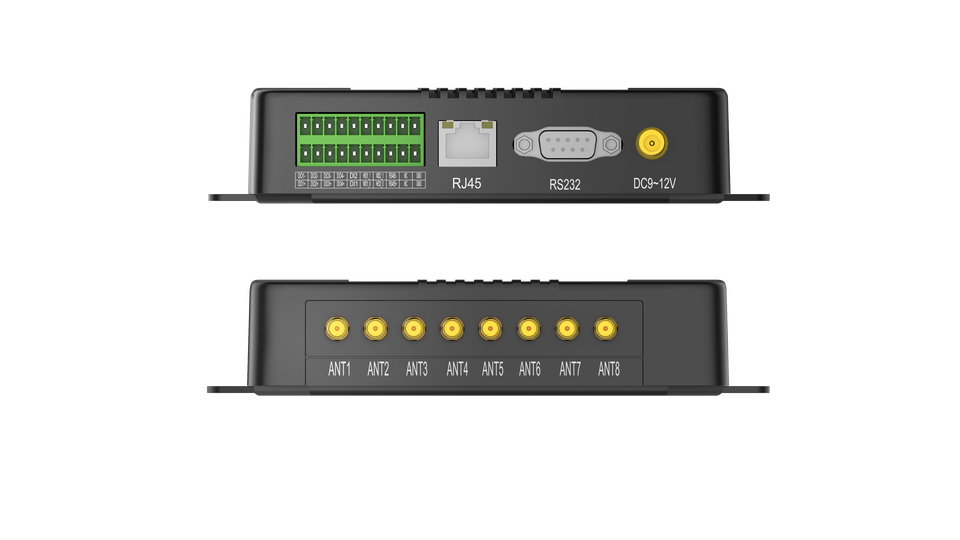

Communication Interfaces:RJ45, RS232, RS485, Wiegand 26/34 interfaces
Communication Protocols:Modbus TCP, Modbus RTU protocols, TCP/UDP
4G Cat.1 Communication (Optional):Downlink speed 10Mbps, uplink speed 5Mbps
WiFi (Optional):Supports IEEE 802.11 n/b/g
Communication Rate:Serial port speed 9600~115200bps, RJ45 10Mbps
Operating Status:LED indicators, buzzer
Reliable Firmware Upgrades:Scalable upgrade mechanism
General Purpose Input/Output (GPIO):2 inputs, 4 outputs
Application Software Interface:API development kit and VC, VB, Java application examples provided
Test Software:VANCH VUPv1.0
Dimensions:138 (L) * 138 (W) * 38 (H) mm
Power Supply:Power converter with 220V AC input and +12V/3A DC output
Key attributes
Connection
wired
Brand Name
UHF RFID Fixed Industrial Reader
Model Number
VF-747P
Place of Origin
Guangdong, China
Type
UHF RFID Fixed Industrial Reader
RF Core Chip
Impinj VM-64/68 E710 Dedicated RF Chip Module (USA)
Air Interface Protoco
EPC Global UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B
Operating Frequency
902-928MHz or 865-868MHz
Output Powe
33dBm±1dBm
Output Power Adjustment
1dBm increments (configurable via VANCH software)
Receiver Sensitivity
<-85dBm
Tag Identification Peak Speed
>950 Hz
Tag RSSI
Support
Number of Antennas
4 or 8 external SMA antenna interfaces
Communication Interfaces
RJ45, RS232, RS485, Wiegand 26/34 interfaces
Communication Protocols
Modbus TCP, Modbus RTU protocols, TCP/UDP
4G Cat.1 Communication (Optional)
Downlink speed 10Mbps, uplink speed 5Mbps
WiFi (Optional)
Supports IEEE 802.11 n/b/g
Communication Rate
Serial port speed 9600~115200bps, RJ45 10Mbps
Operating Status
LED indicators, buzzer
Reliable Firmware Upgrades
Scalable upgrade mechanism
General Purpose Input/Output (GPIO)
2 inputs, 4 outputs
Application Software Interface
API development kit and VC, VB, Java application examples provided
Test Software
VANCH VUPv1.0
Dimensions
138 (L) * 138 (W) * 38 (H) mm
Power Supply
Power converter with 220V AC input and +12V/3A DC output
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$750
Variations
Select nowSpecification
UHF RFID Fixed Industrial Reader
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
