Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PV-12060H-P2C / PV-24060H-P2CModel Number
Pt POWERBrand Name
Led Lighting, Indoor Lighting, Cabinet LightingApplication
PlasticCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥90%
Energy Transfer:AC-DC
Input Voltage:AC200-240V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:2.5A/5A
Output Frequency:50/60Hz
Output Power:60W
Output Type:Single
Product Weight（kg）:0.3
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof
Type:Constant voltage led driver
IP Rate:IP 20
PF:≥0.95

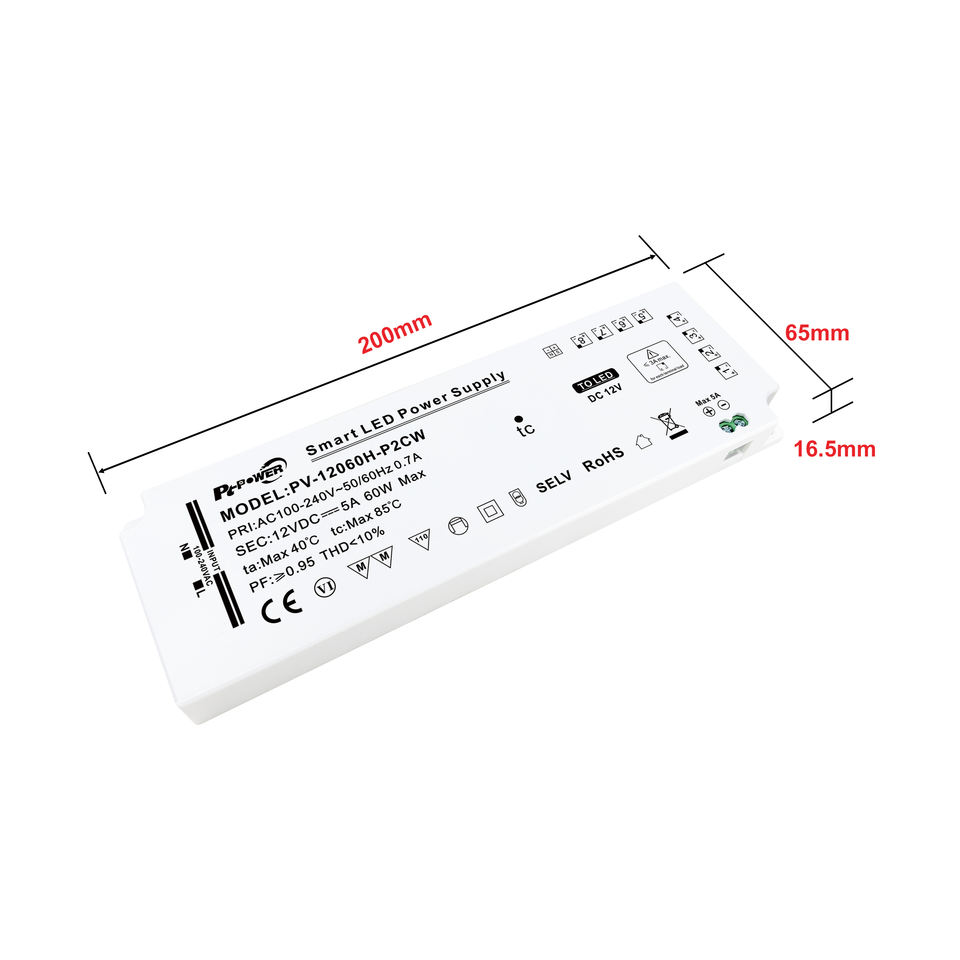

Size:200x65x16.5mm(L*W*H)
Working temperature:-25°C~+50°C
Standby power consumption:<0.5W
Protection:Short circuit, overload protection
EMC emission:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Other application:Class 1 2 3 LED Lighting
Output Voltage:DC12V/24V
Certification:CE/CB/FCC/RoHS
