Attributes
±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)Accuracy
Polypropylene + glass fibermaterial

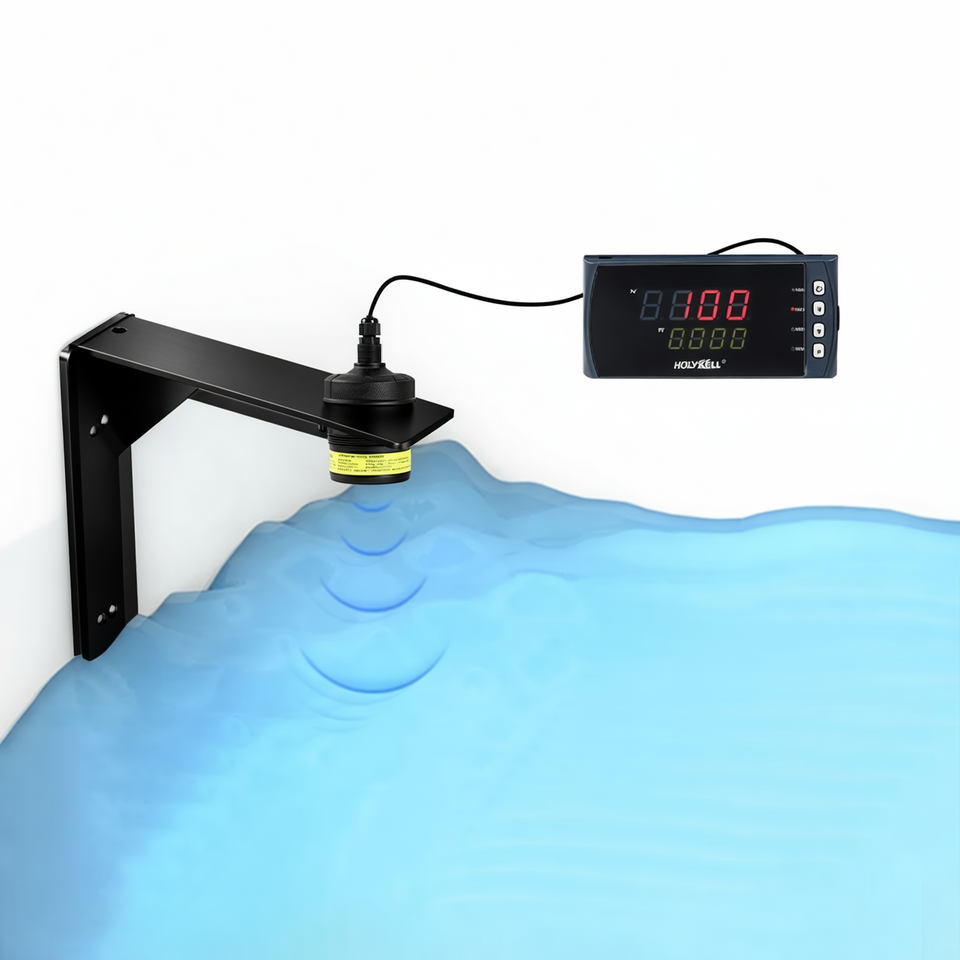

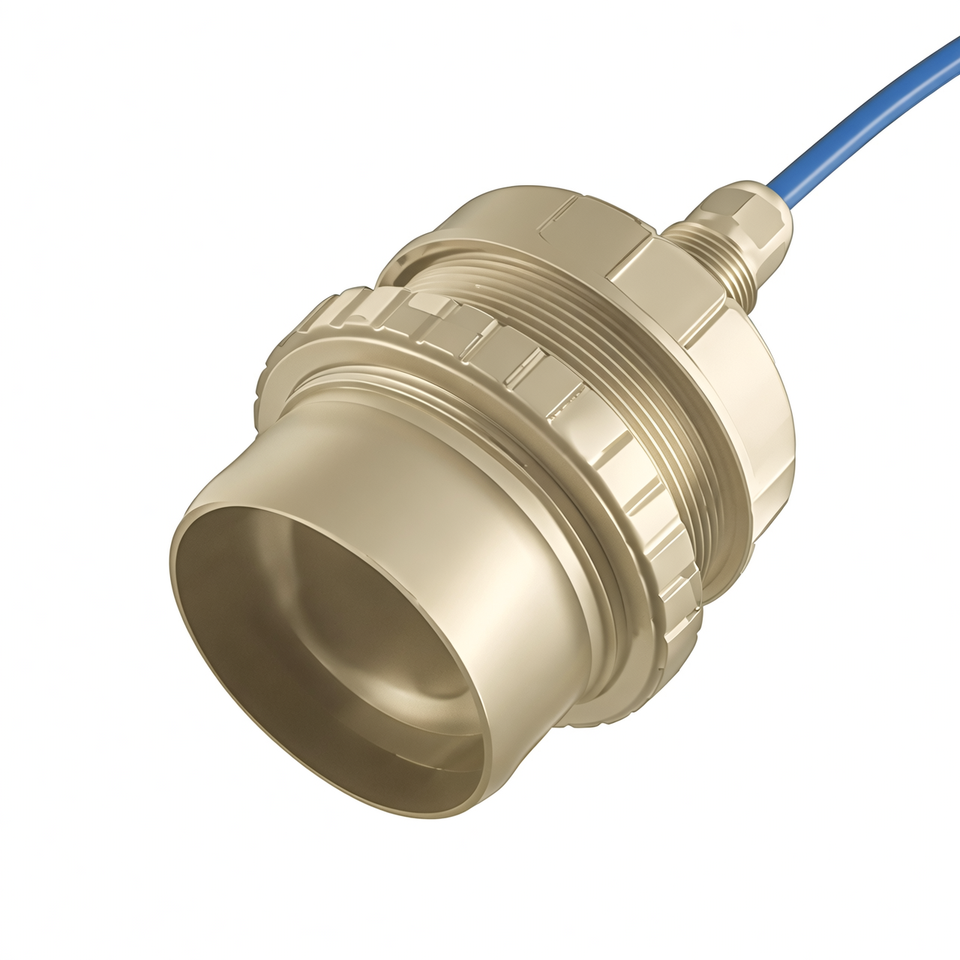

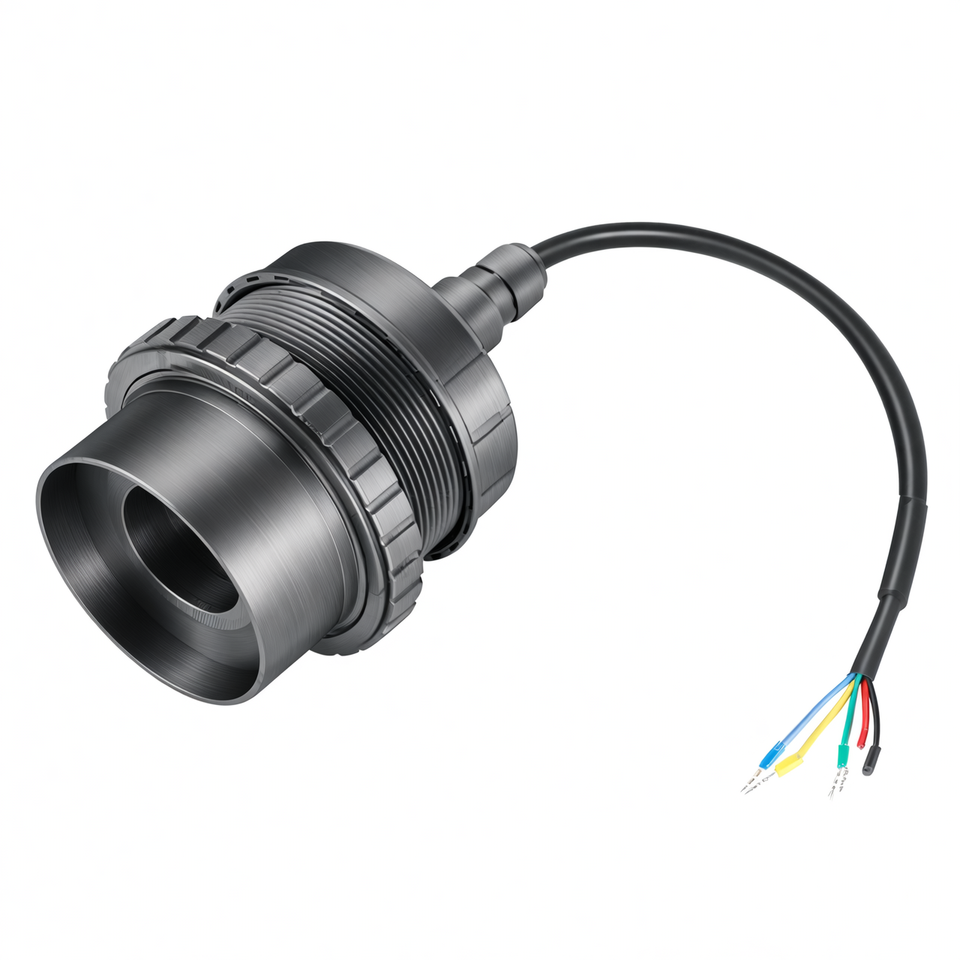

Ultrasonic Level SensorType
Hunan, Chinaplace of origin
PMIbrand name
OEM, ODMcustomized support
warranty:12 months
Measuring range:2.5m, 5m, 10m, others on request
Blind area:≤150mm(for 2.5m &5m ranges); ≤500mm(for 10m range)
Beam angle:12°
Output signal:RS485+4~20mA; RS485+0~5V
Power supply:10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature:-10~50℃(-40~80℃ by customized)
Installation mode:Nut clamping fixed installation, screw-in installation, M68*2
IP rating:IP67 typical, IP68 by customized
Product material:Polypropylene + glass fiber
