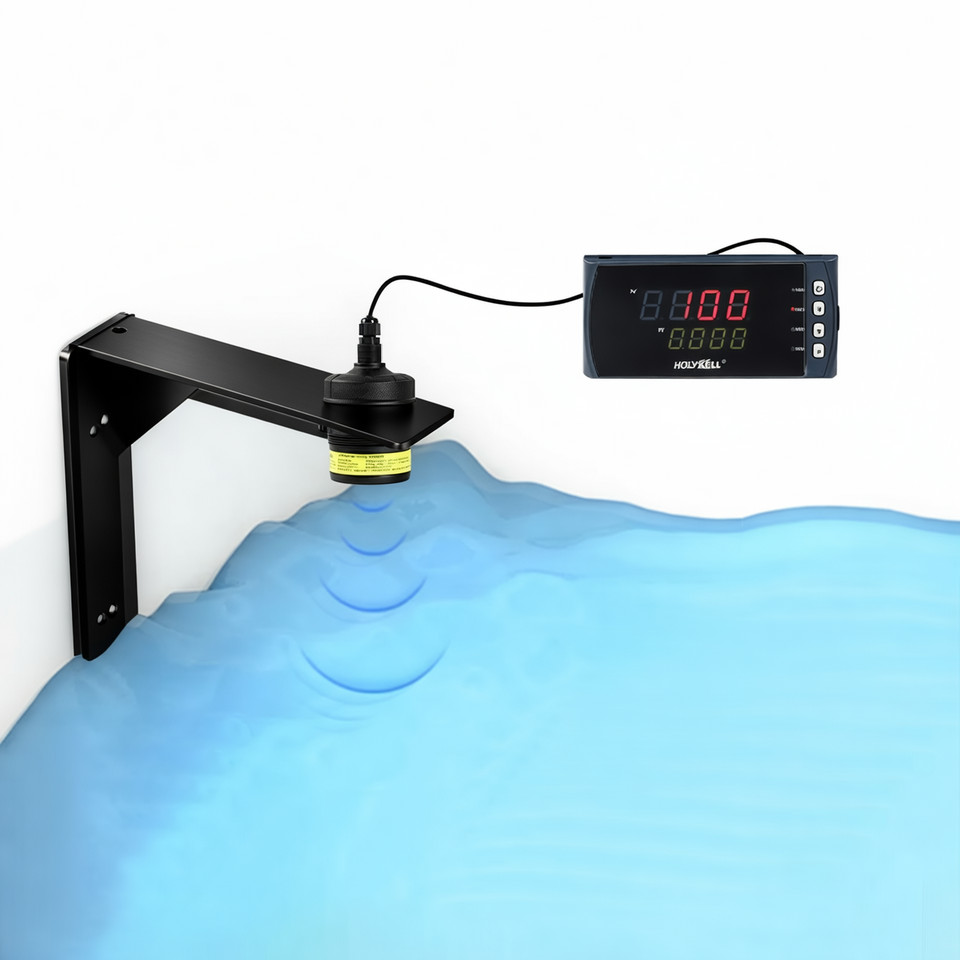

Ultrasonic Level Sensor IP67 Rated 0.5% Accuracy 15 Beam Angle Polypropylene + Glass Fiber for CE Certified RS485 Modbus
No reviews yet
Attributes
Ultrasonic Level SensorType
0.5%F.S, 0.5%F.S (typical), 0.25%F.S (by customized)Accuracy
Polypropylene + glass fibermaterial
12 monthwarranty
OEM, ODMcustomized support
PMIbrand name
place of origin:Hunan, China
Measuring range:2.5m, 5m, 10m, others on request
Blind area:≤150mm(for 2.5m &5m ranges); ≤500mm(for 10m range)
Beam angle:15°

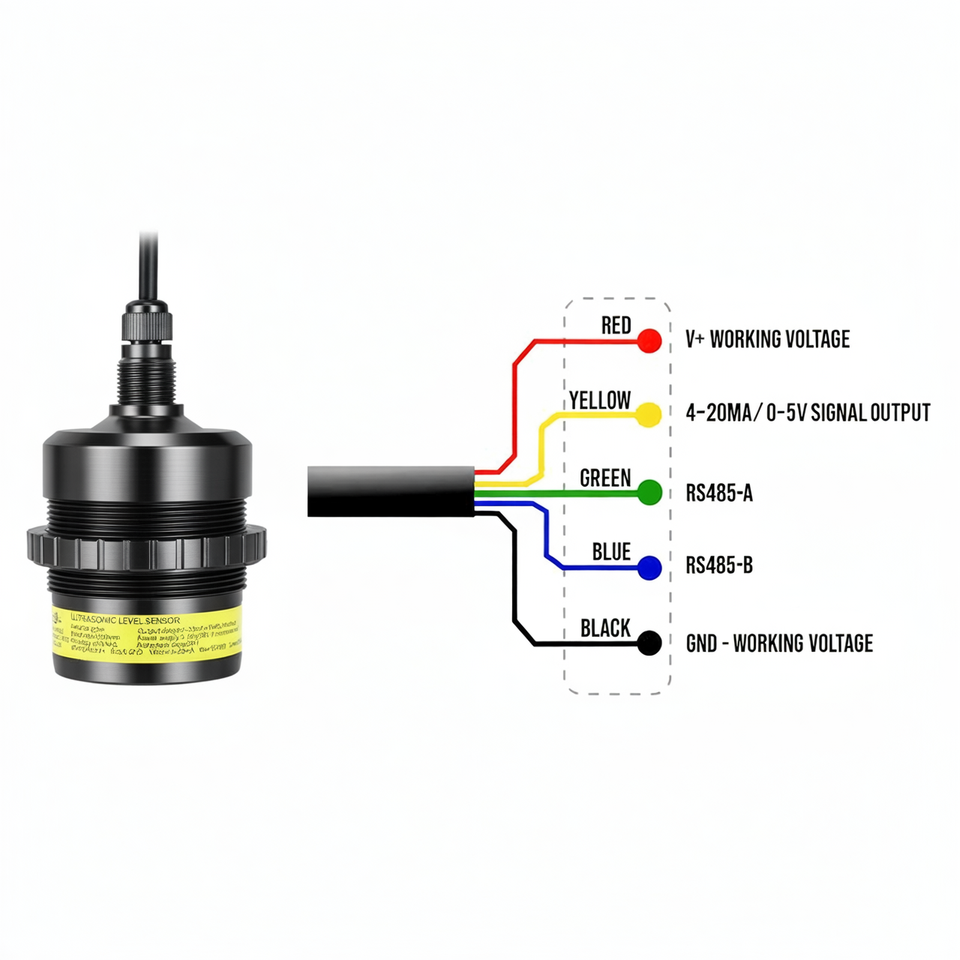

Output signal:RS485+4~20mA; RS485+0~5V
Power supply:10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature:-10~50℃(-40~80℃ by customized)
Installation mode:Nut clamping fixed installation, screw-in installation, M68*2
Product material:Polypropylene + glass fiber
IP rating:IP67 typical, IP68 by customized
Key attributes
Type
Ultrasonic Level Sensor
Accuracy
0.5%F.S, 0.5%F.S (typical), 0.25%F.S (by customized)
material
Polypropylene + glass fiber
warranty
12 month
customized support
OEM, ODM
brand name
PMI
place of origin
Hunan, China
Measuring range
2.5m, 5m, 10m, others on request
Blind area
≤150mm(for 2.5m &5m ranges); ≤500mm(for 10m range)
Beam angle
15°
Output signal
RS485+4~20mA; RS485+0~5V
Power supply
10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature
-10~50℃(-40~80℃ by customized)
Installation mode
Nut clamping fixed installation, screw-in installation, M68*2
Product material
Polypropylene + glass fiber
IP rating
IP67 typical, IP68 by customized
Packaging and delivery
Selling Units
Single item
Single package size
22X15X18 cm
Single gross weight
2.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
£8091
Variations
Select nowMeasurement Range
0-5m water, RS485+4-20mA, 7-30VDC/2A, 1m cable
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
