Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

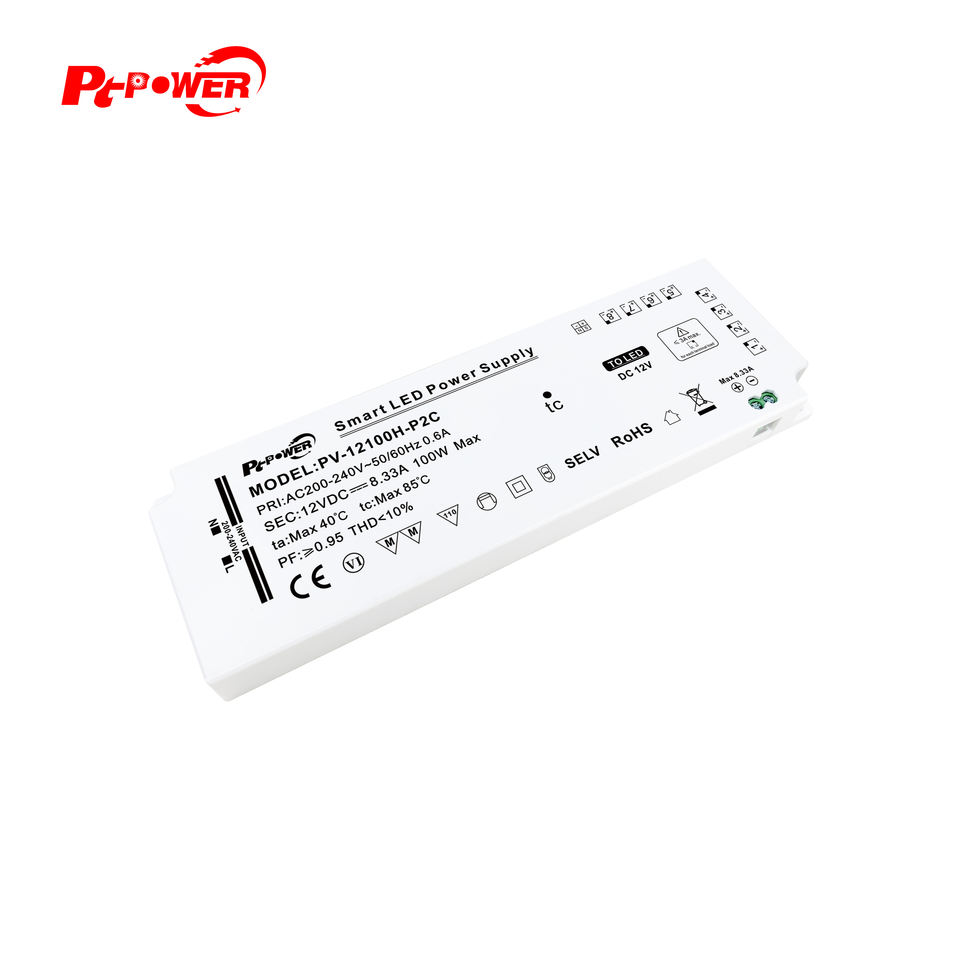

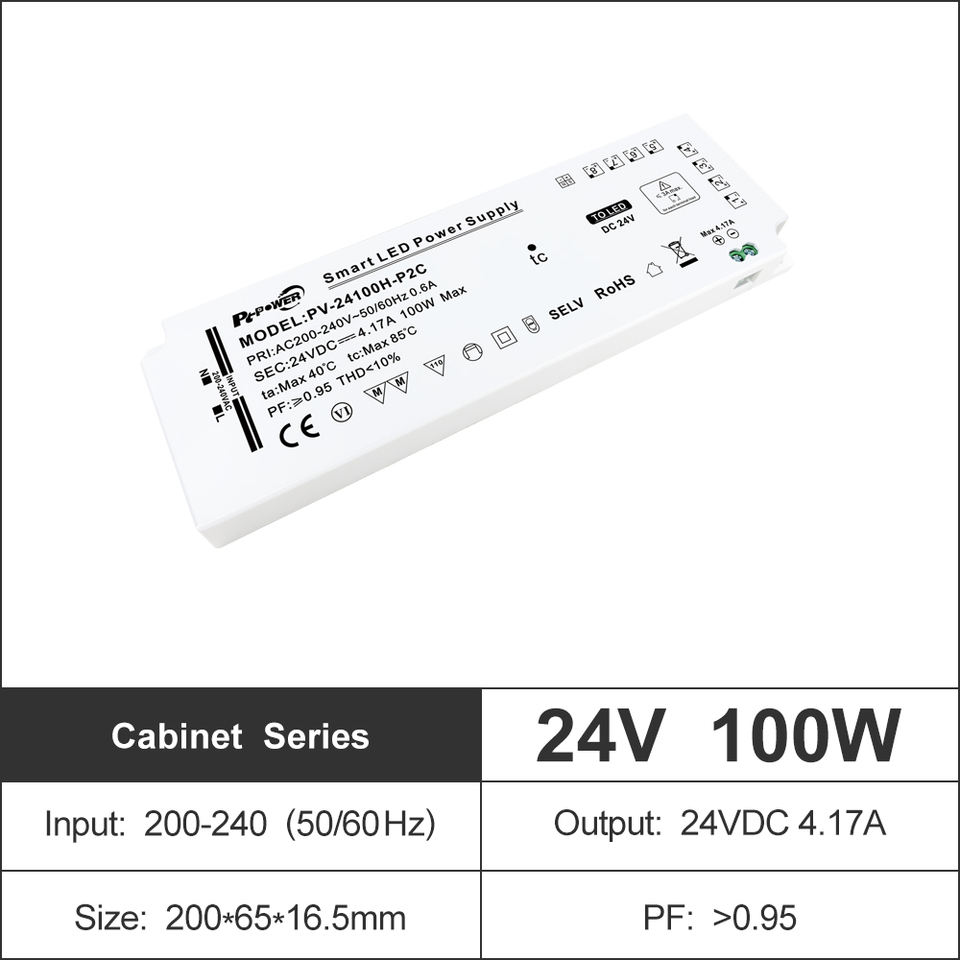

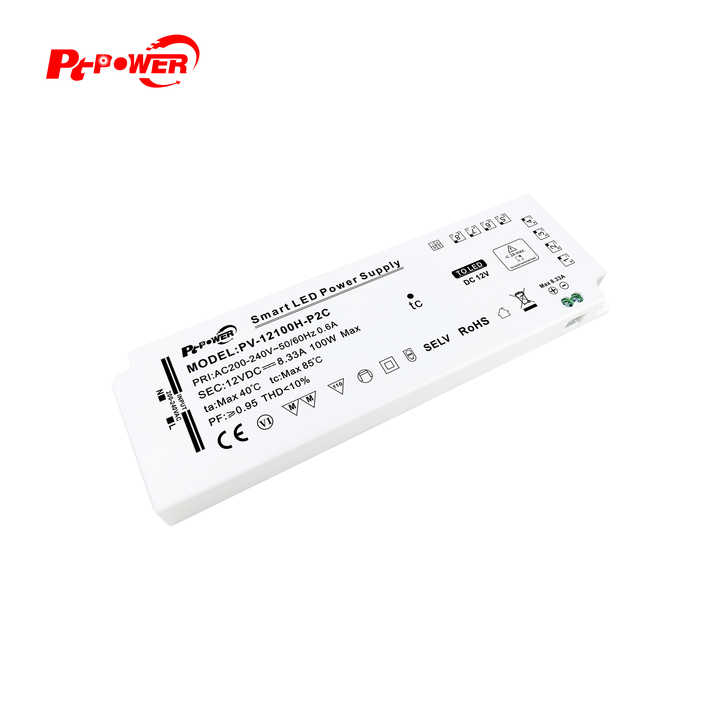

PV-12100H-P2C / PV-24100H-P2CModel Number
Pt POWERBrand Name
Led LightingApplication
PlasticCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥90%
Energy Transfer:AC-DC
Input Voltage:AC200-240V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:4.17A/8.33A
Output Frequency:50/60Hz
Output Power:100W
Output Type:Single
Product Weight（kg）:0.32
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof, Switching
Type:Constant Voltage led driver
IP Rate:IP 20
PF:≥0.95

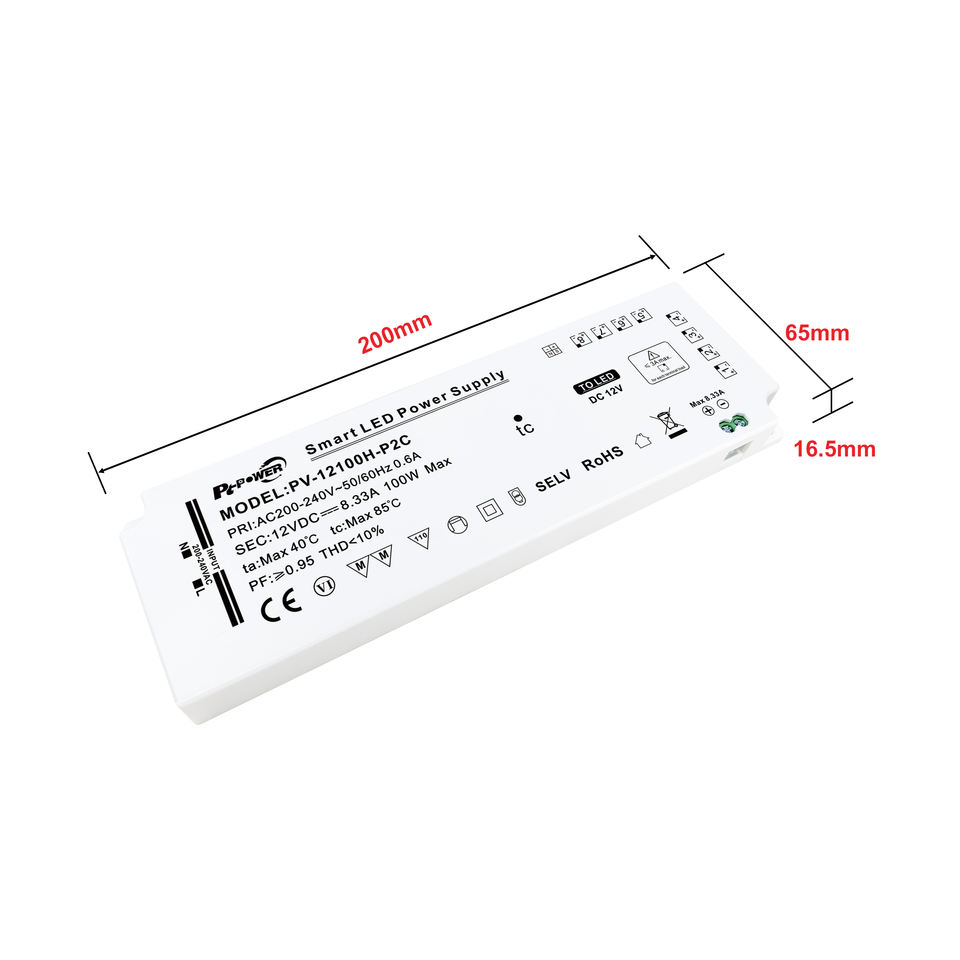

Size:200*65*16.5mm
Working temperature:-25°C~+50°C
Standby power consumption:<0.5W
EMC standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Other application:Class 1 2 3 LED Lighting
Protection:Short circuit, overload protection
Certification:CE/CB/FCC/RoHS
