Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

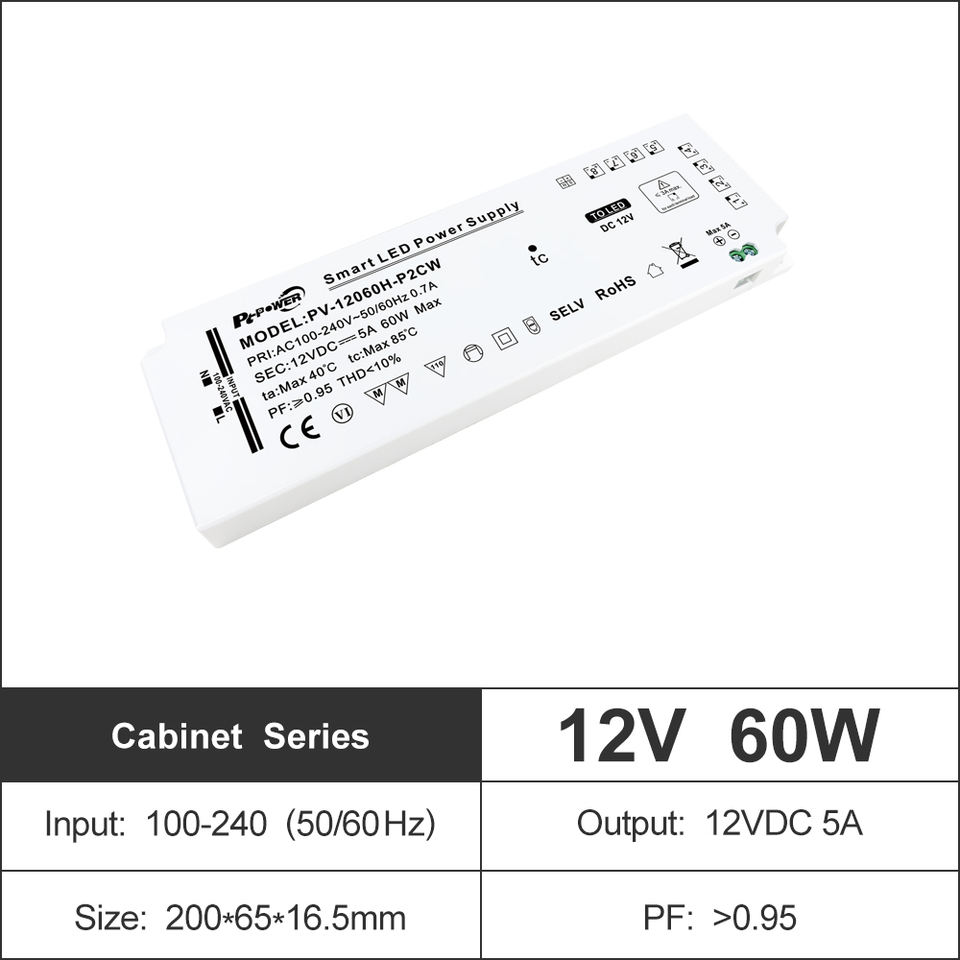

PV-12060H-P2CW/PV-24060H-P2CWModel Number
PT PowerBrand Name

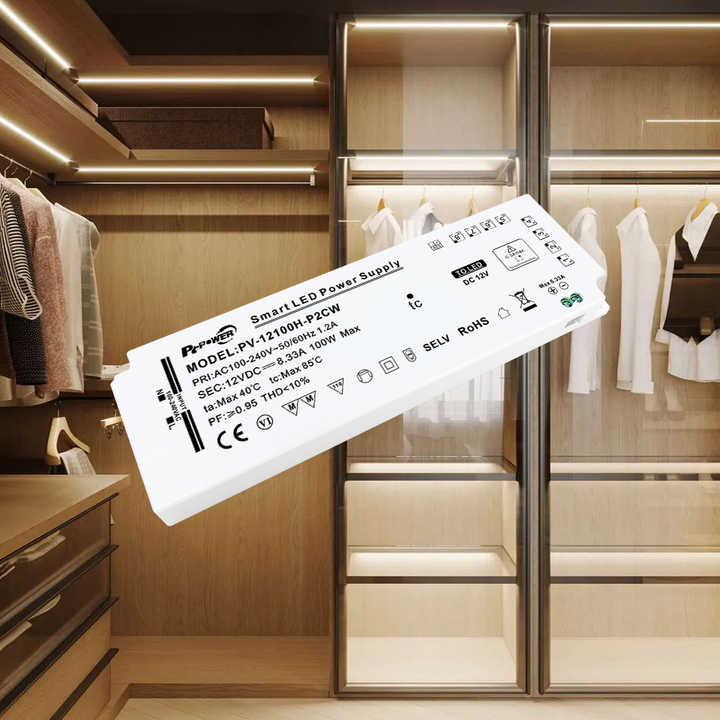

Led Lighting, Indoor Lighting, Cabinet LightingApplication
PlasticCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥90%
Energy Transfer:AC-DC
Input Voltage:AC100-240V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:2.5A/5A
Output Frequency:50/60Hz
Output Power:60W
Output Type:Single
Product Weight（kg）:0.32
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof, Switching
Type:Constant Voltage LED Lighting
IP Rate:IP 20
PF:≥0.95

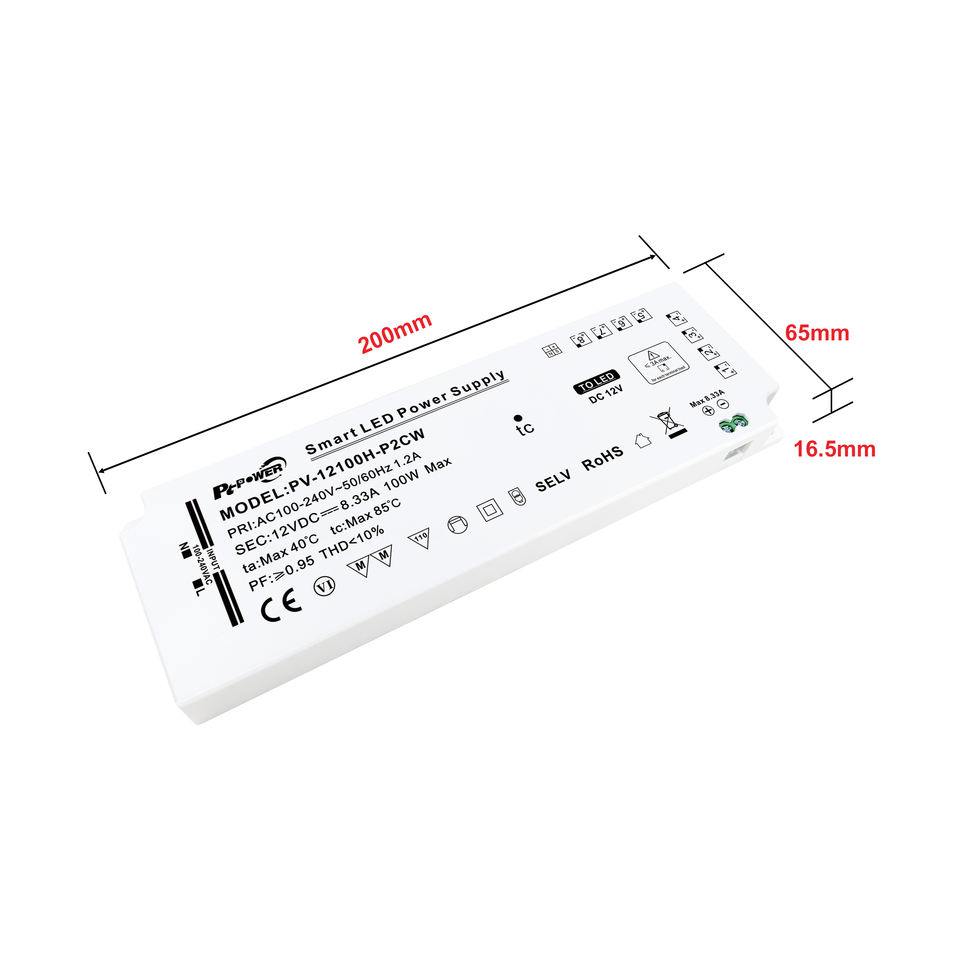

Size:200*65*16.5mm
Working temperature:-25°C~+50°C
Standby power consumption:<0.5W
Protection:Short circuit, overload protection
Other application:Class 1 2 3 LED Lighting
EMC standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Output Volatage:DC 12V 24V
