Attributes
otherMounting Type
not haveManufacturing Date Code
ZT-F1030A ZT-F1035 ZT-F1060Model Number
Zhenzhong TestBrand Name
SensorUsage
±0.1%, ±0.05%Accuracy

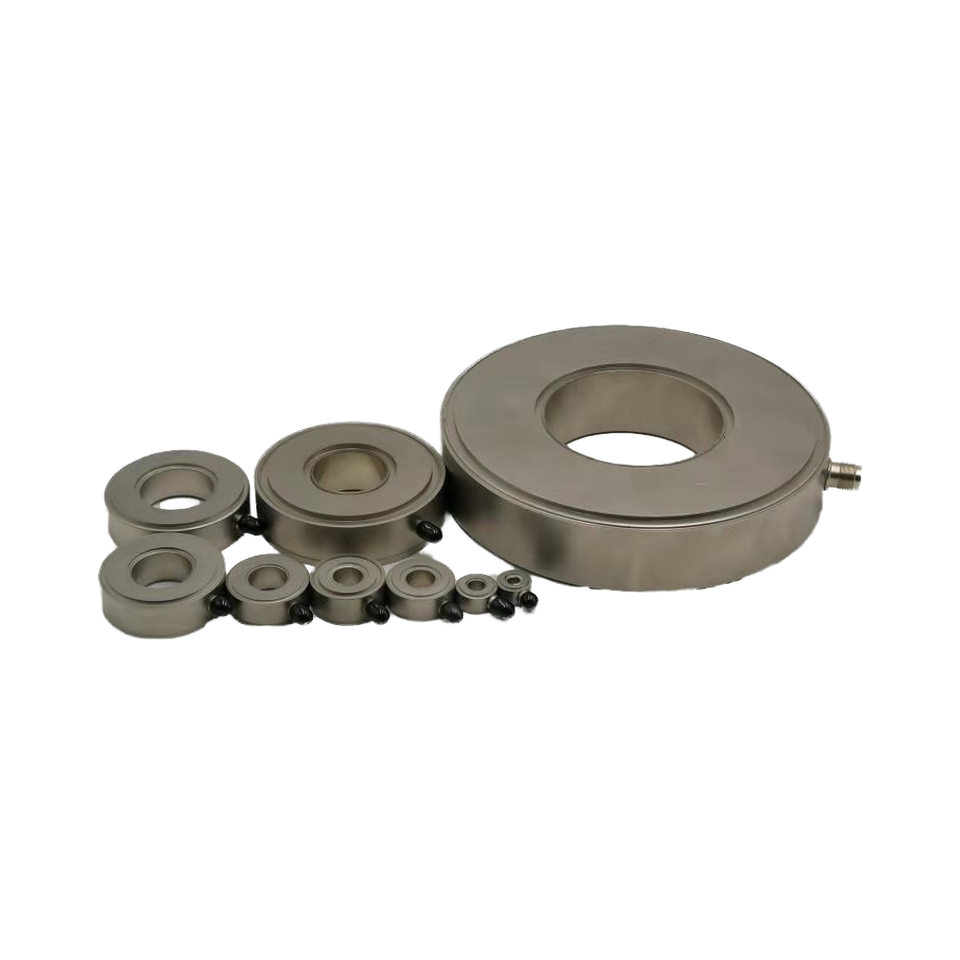

Description:other, Piezoelectric Unidirectional Force Sensor
Type:Piezoelectric Unidirectional Force Sensor
Place of Origin:Jiangsu, China
Series:Pressure sensor
Features:Measure pressure
Theory:not have
Output:Side end L5 socket
Product model:ZT-F1030A ZT-F1035 ZT-F1060
Charge sensitivity (20 ± 5 ℃):~4pC/N ~4pC/N ~2pC/N/~4pC
measuring range:0~30kN 0~35kN 0~60kN
Overload capacity:120 %
resonant frequency:>40kHz >60kHz >50kHz
weight:18 g 18 g 32 g
Sensitive materials:quartz
capacitance:~18pF ~18pF ~28pF
Working temperature range:-54~+120 ℃
Shell material:High strength stainless steel
Selling Units:Single item
