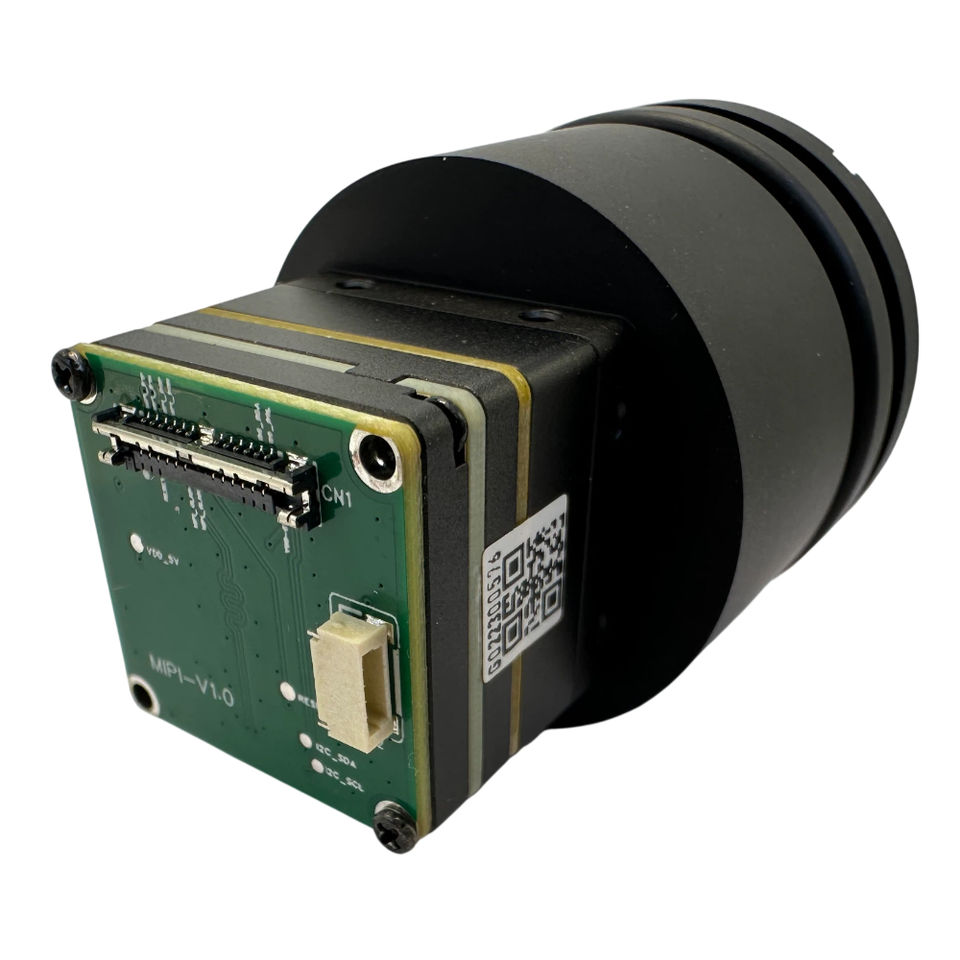

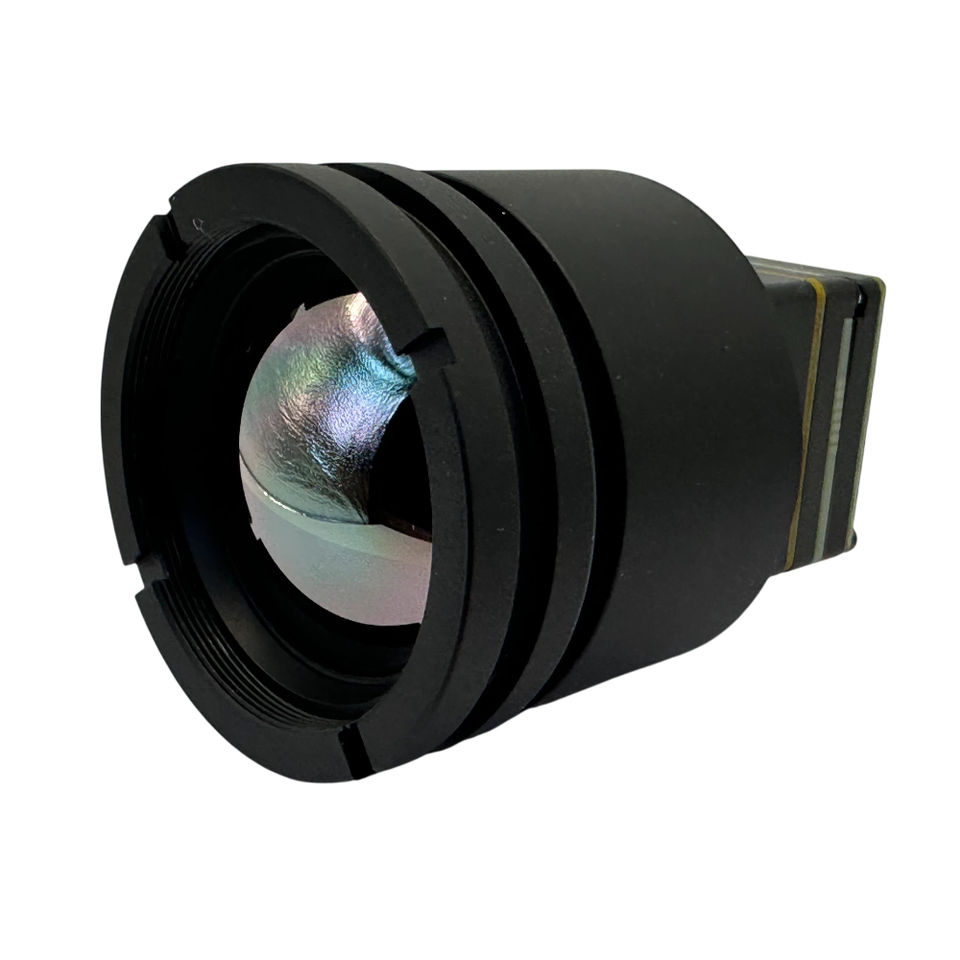

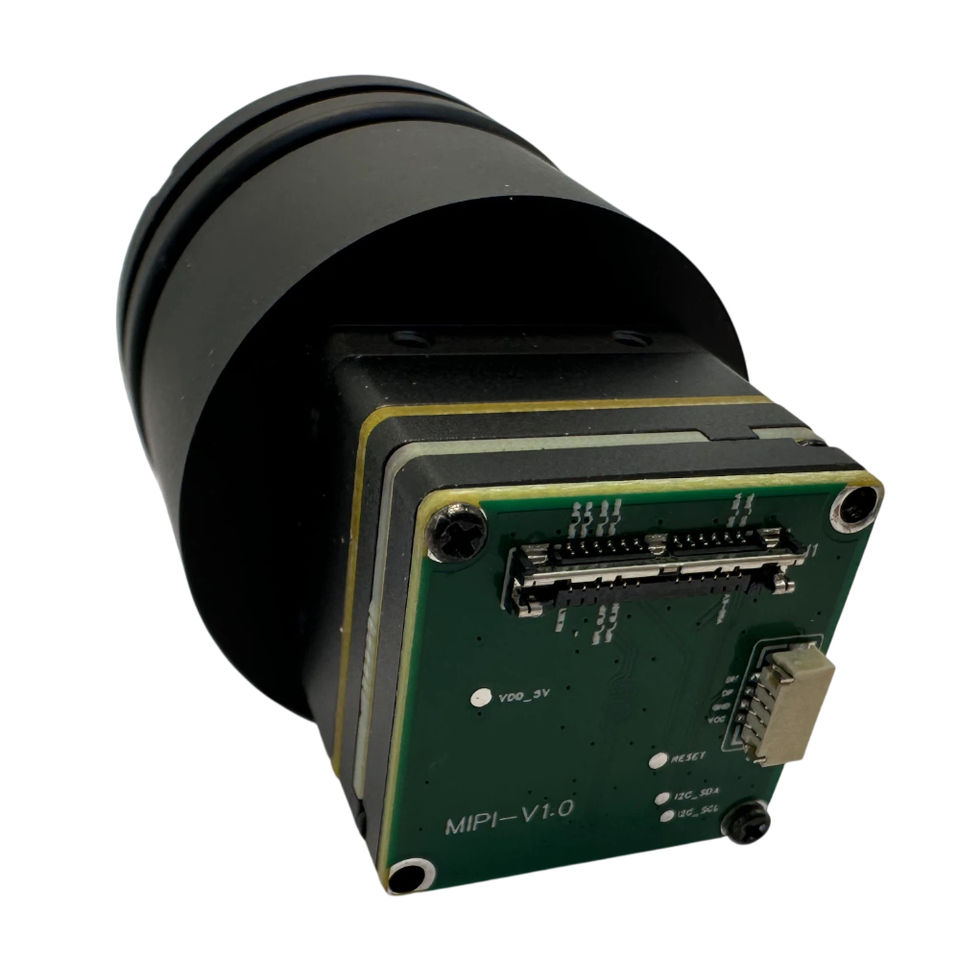

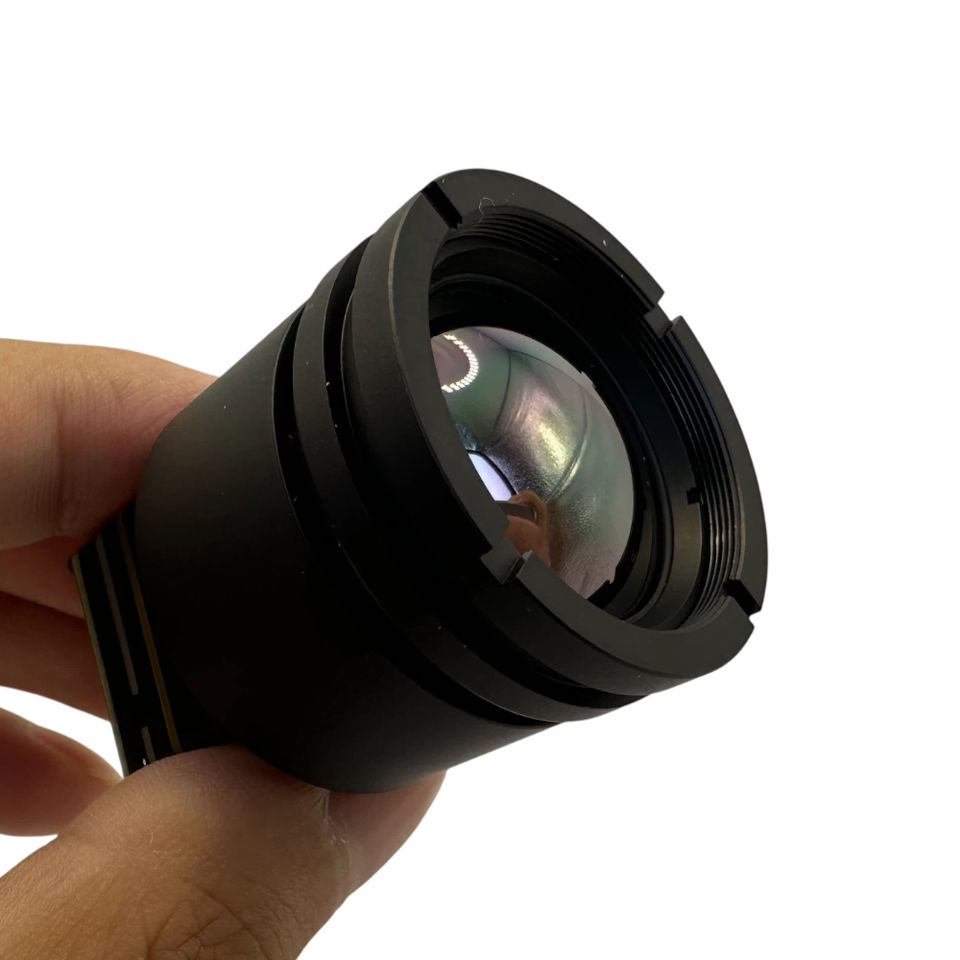

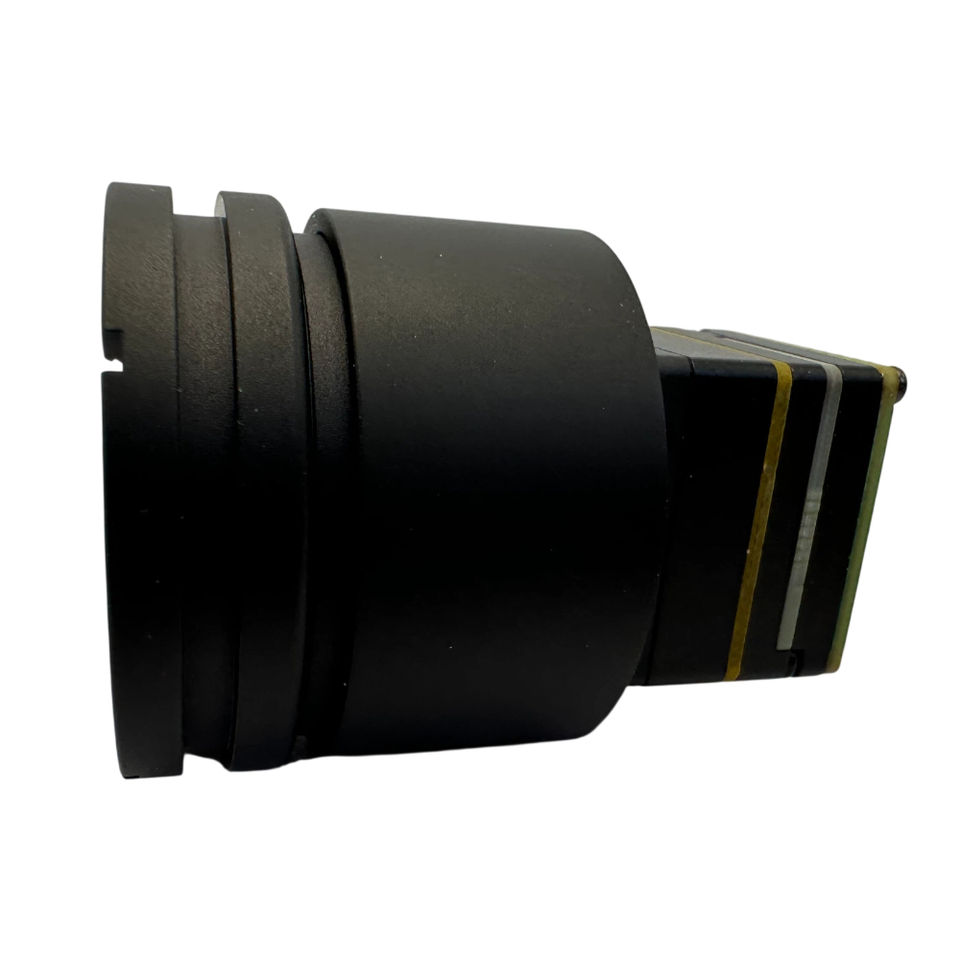

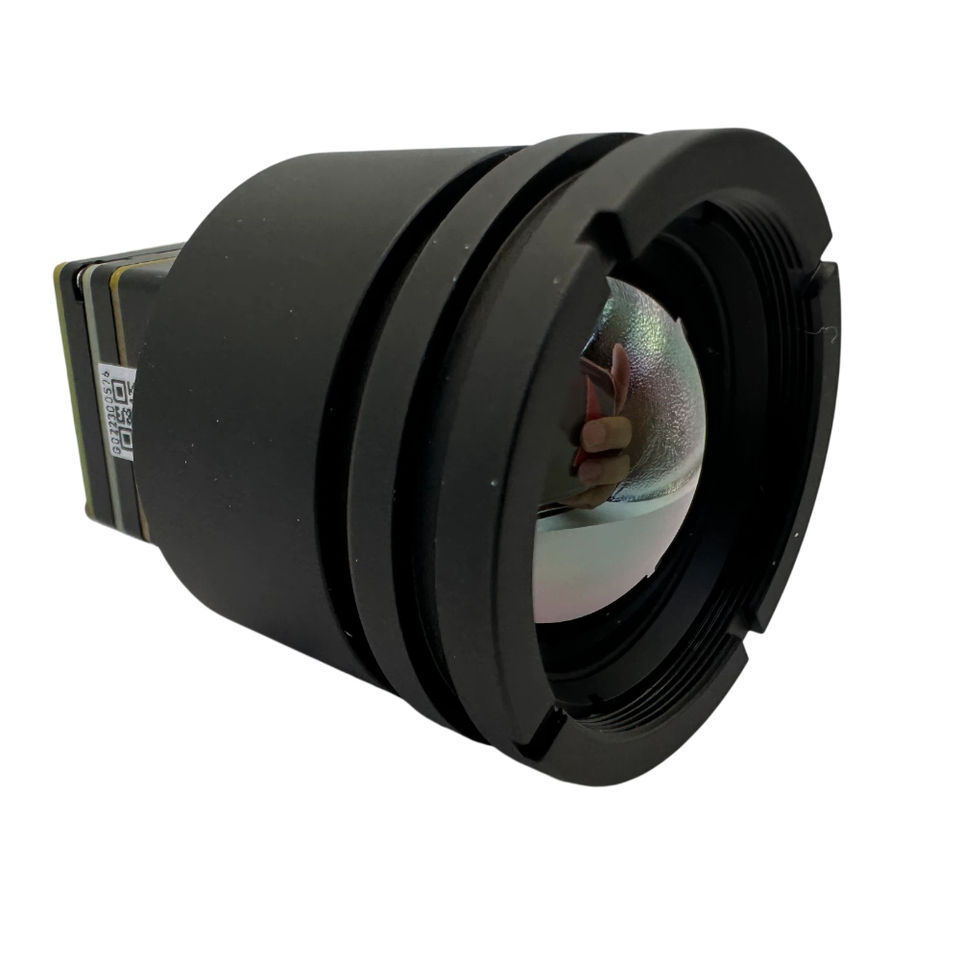

Usb Uvc Thermal Camera Module 256x192/384x288, Per-pixel Temperature Data, Compatible with Raspberry Pi & Orin

No reviews yet
£19911
1-99 pieces
£19309
100-999 pieces
£18707
≥1,000 pieces
Select now

Specification

CVBS interface
USB interface
MIPI+USB interface

Key attributes

Brand Name

General

Model Number

General-Mini1 256x192 384x288 640x512

Place of Origin

Other

Mounting Type

EASY INSTALLED

Description

no

Application

INSUDTRY

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Resolution
256X192/384X288/640X512
network
USB UVC/CVBS
Model Number
General-Mini1 256x192 384x288 640x512
Brand Name
General
Place of Origin
Guangdong, China
Mounting Type
EASY INSTALLED
Description
no
Application
INSUDTRY
Series
Temperature measurement and imaging series
Features
Multifunctional Thermal Imaging Core Module
Size / Dimension
21x21x26.8 mm
Sensor
yes
Technology
Infrared Thermal Imaging
SENSOR
Vanadium Oxide Uncooled Infrared Focal Plane Detector
Pixel Pitch
12um
LENS
4mm/6mm/11mm/13mm/15mm/18mm/25mm/35mm/55mm
INTERFACE
USB CVBS MIPI
Spectral Band
8~14um
NETD
≤40mK@25c,F#1.0,25Hz
Thermal Time Constant
12ms
Non-uniformity Correction
Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment
0~100, optional
Polarity/Palette
White-hot/Black-hot/Various palettes supported

Packaging and delivery

Selling Units
Single item
Single package size
9.7X9.6X5.3 cm
Single gross weight
0.080 kg

Lead time
