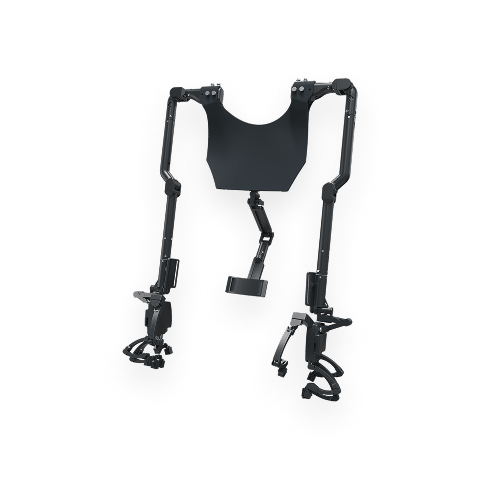

Wearable Motion Capture System DexCap 65 DOF High Precision Robot Data Collection Device for AI Training and Humanoid Robotics
No reviews yet
Attributes
DC 5V / Power Bank Supplyvoltage
100Wpower(w)
Humanoid Robot / Robot Arm / AI System / TeleoperaCompatible Product Type
Aluminum Alloy + Composite MaterialsMaterial
Encoder, Sensor, Controller, Wearable Frame, Commucore components
1 YearWarranty
place of origin:China
production capacity:50 Sets/Month
weight (kg):4.2
brand name:DexRobot
application:AI Robotics / Humanoid Robot / Motion Capture
dimension(l*w*h):890 * 561 * 210 mm

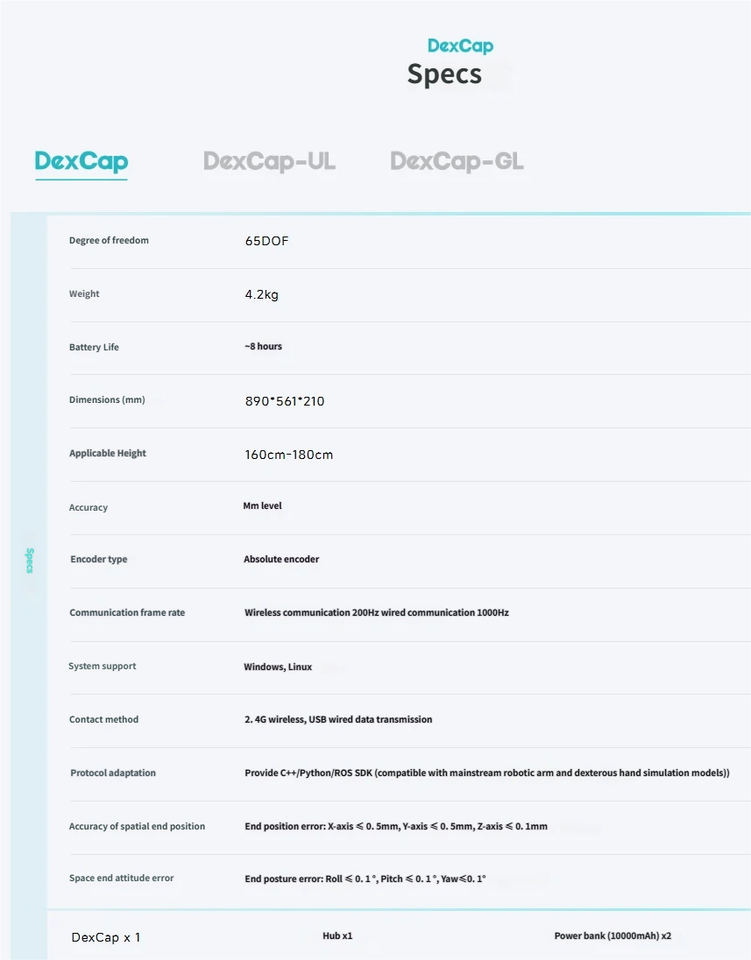

Degrees of Freedom:65 DOF
Accuracy:Millimeter Level
Encoder Type:Absolute Encoder
Applicable Height:160-180 cm
Battery Life:8 Hours
Communication:2.4G Wireless / USB Wired
Wireless Rate:200 Hz
Wired Rate:1000 Hz
System Support:Windows / Linux
SDK:C++ / Python / ROS
Position Accuracy:X ≤ 0.5 mm Y ≤ 0.5 mm Z ≤ 0.1 mm
Attitude Accuracy:Roll ≤ 0.1° Pitch ≤ 0.1° Yaw ≤ 0.1°
Function:Motion Capture / Robot Teleoperation / AI Data Collection

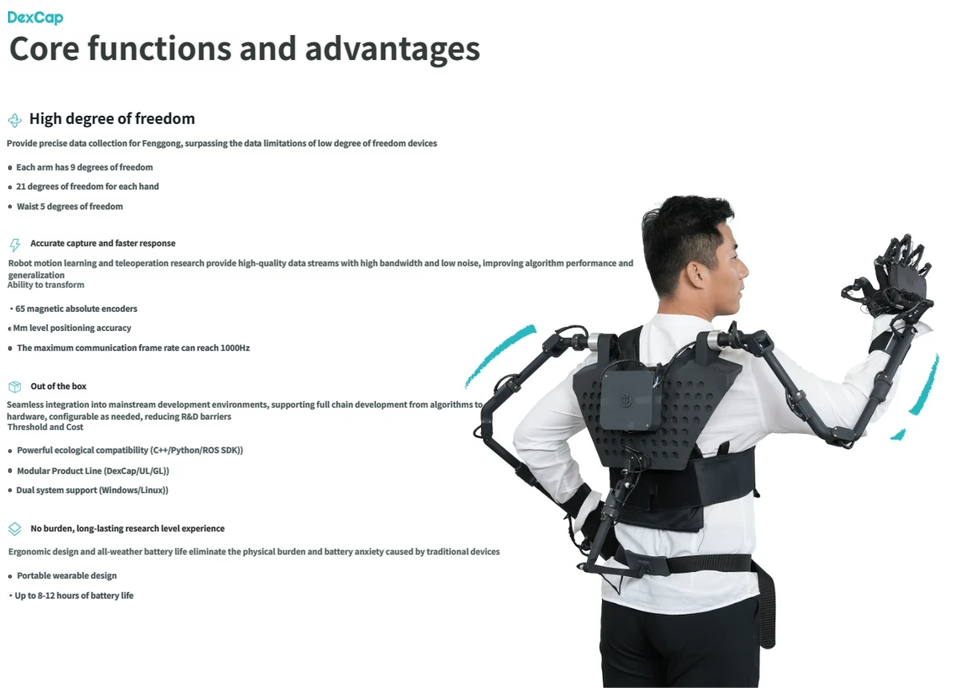

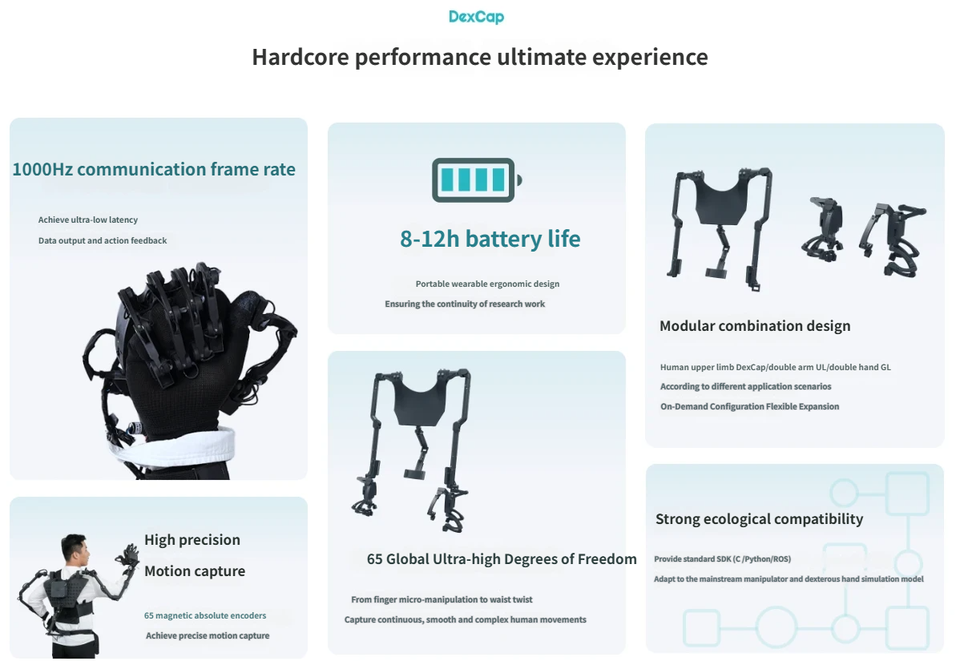

Feature:Wearable Design / Real-Time Tracking / High Precision / Low Latency
Power Supply:Power Bank (10000mAh *2)
Included:DexCap System / Hub / Power Bank
OB Robot Limited
Kowloon, HK1 yr on Alibaba.comMultispecialty Supplier
Response Time ≤ 2hOn-time delivery rate ≥ 100%
Drawing-based customizationSample-based customization
Key attributes
voltage
DC 5V / Power Bank Supply
power(w)
100W(0.13hp)
Compatible Product Type
Humanoid Robot / Robot Arm / AI System / Teleopera
Material
Aluminum Alloy + Composite Materials
core components
Encoder, Sensor, Controller, Wearable Frame, Commu
Warranty
1 Year
place of origin
China
production capacity
50 Sets/Month
weight (kg)
4.2
brand name
DexRobot
application
AI Robotics / Humanoid Robot / Motion Capture
dimension(l*w*h)
890 * 561 * 210 mm(35.04*22.09*8.27in)
Degrees of Freedom
65 DOF
Accuracy
Millimeter Level
Encoder Type
Absolute Encoder
Applicable Height
160-180 cm
Battery Life
8 Hours
Communication
2.4G Wireless / USB Wired
Wireless Rate
200 Hz
Wired Rate
1000 Hz
System Support
Windows / Linux
SDK
C++ / Python / ROS
Position Accuracy
X ≤ 0.5 mm Y ≤ 0.5 mm Z ≤ 0.1 mm
Attitude Accuracy
Roll ≤ 0.1° Pitch ≤ 0.1° Yaw ≤ 0.1°
Function
Motion Capture / Robot Teleoperation / AI Data Collection
Feature
Wearable Design / Real-Time Tracking / High Precision / Low Latency
Power Supply
Power Bank (10000mAh *2)
Included
DexCap System / Hub / Power Bank
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
£7,44288
Variations
Select nowmodel number
DexCap
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
4 interest-free payments with
