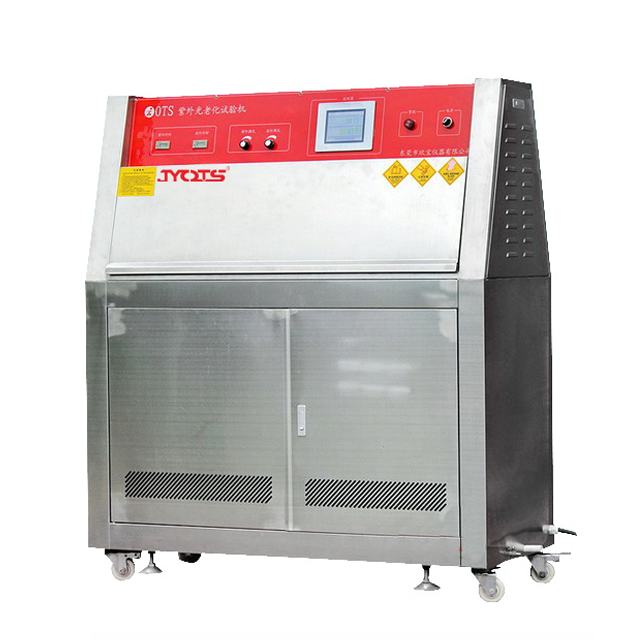

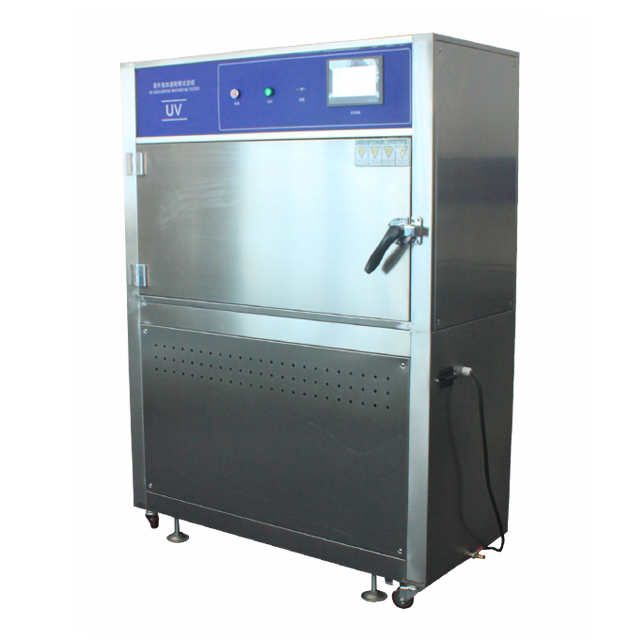

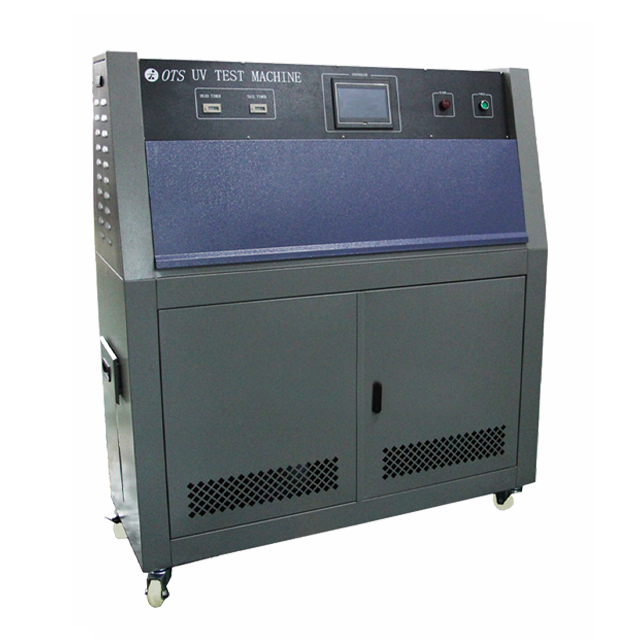

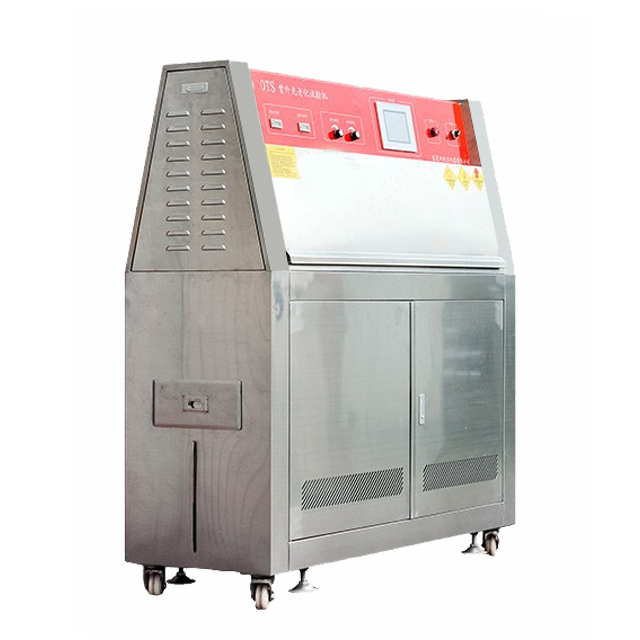

Weathering Testing Machine Chamber 1 Year Warranty 0.5 Accuracy JY Lab UV Accelerated Aging IP56 Protection 350W 220V
No reviews yet
Attributes
Testing MachineType
350Wpower
Ip56Protection Class
220V Electrical EquipmentVoltage
High AccuracyAccuracy Class
±0.5℃Accuracy
place of origin:Guangdong, China
customized support:OEM, ODM
brand name:JUNYAN
Application:Textile Testing, Leather Testing, Plastic Testing, coating testing, painting testing, rubber tesing, steel testing
warranty:1 Year
Temp. range:RT+20℃~70℃
Temp. fluctuation:±1℃
Black panel temp.:+50℃~70℃ (adjustable)
Control System:PLC (illumination, condensation, water spray cycles are programmable)
UV lamp:8pcs, 1600 hours lifetime
Ultraviolet wavelength:290 nm~400 nm (peak wavelength 313 nm & 340 nm, adjustable)
Effective irradiation area:900*210 mm
Irradiation intensity:313 nm: 0.4-0.9 w/m²,313 nm: 0.2-1.0 w/m² (adjustable)
Distance between sample & lamp:50±2 mm
Sample dimension (standard chamber):75*290 mm (12 pcs)or 72*150 mm (24pcs), Max thickness 5mm
Key attributes
Type
Testing Machine
power
350W
Protection Class
Ip56
Voltage
220V Electrical Equipment
Accuracy Class
High Accuracy
Accuracy
±0.5℃
place of origin
Guangdong, China
customized support
OEM, ODM
brand name
JUNYAN
Application
Textile Testing, Leather Testing, Plastic Testing, coating testing, painting testing, rubber tesing, steel testing
warranty
1 Year
Temp. range
RT+20℃~70℃
Temp. fluctuation
±1℃
Black panel temp.
+50℃~70℃ (adjustable)
Control System
PLC (illumination, condensation, water spray cycles are programmable)
UV lamp
8pcs, 1600 hours lifetime
Ultraviolet wavelength
290 nm~400 nm (peak wavelength 313 nm & 340 nm, adjustable)
Effective irradiation area
900*210 mm
Irradiation intensity
313 nm: 0.4-0.9 w/m²,313 nm: 0.2-1.0 w/m² (adjustable)
Distance between sample & lamp
50±2 mm
Sample dimension (standard chamber)
75*290 mm (12 pcs)or 72*150 mm (24pcs), Max thickness 5mm
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo (Min. order: 100 sets)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
$3,800
Variations
Select nowmodel number
JY-E802 (painting test)
JY-E802 (rubber test)
JY-E802 (plastics test)
JY-E802 (textile test)
JY-E802 (steel test)
JY-E802 (leather test)
JY-E802 (other material test)
Customization options
Customized logo (Min. order: 100 sets)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
