Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PV-12075DT-P1(Triac)/PV-24075DT-P1(Triac)Model Number
Pt POWERBrand Name
Led Lighting, Indoor LightingApplication
PlasticCase Material
Dimming:Triac
Dimming Mode:Triac Dimmable
Efficiency:≥90%
Energy Transfer:AC-DC
Input Voltage:AC100-240V
Lighting solutions service:Lighting And Circuitry Design, Other, Project Installation
Output Current:3.13A/6.25A
Output Frequency:50~60 Hz
Output Power:75W
Output Type:Single
Product Weight（kg）:0.34
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof
Type:Constant Voltage TRIAC Dimmable LED Driver
Waterproof Level(IP Rate):IP20
Certification:CE/UKCA SAA/RoHS
OEM/ODM:Yes
PF:≥0.95

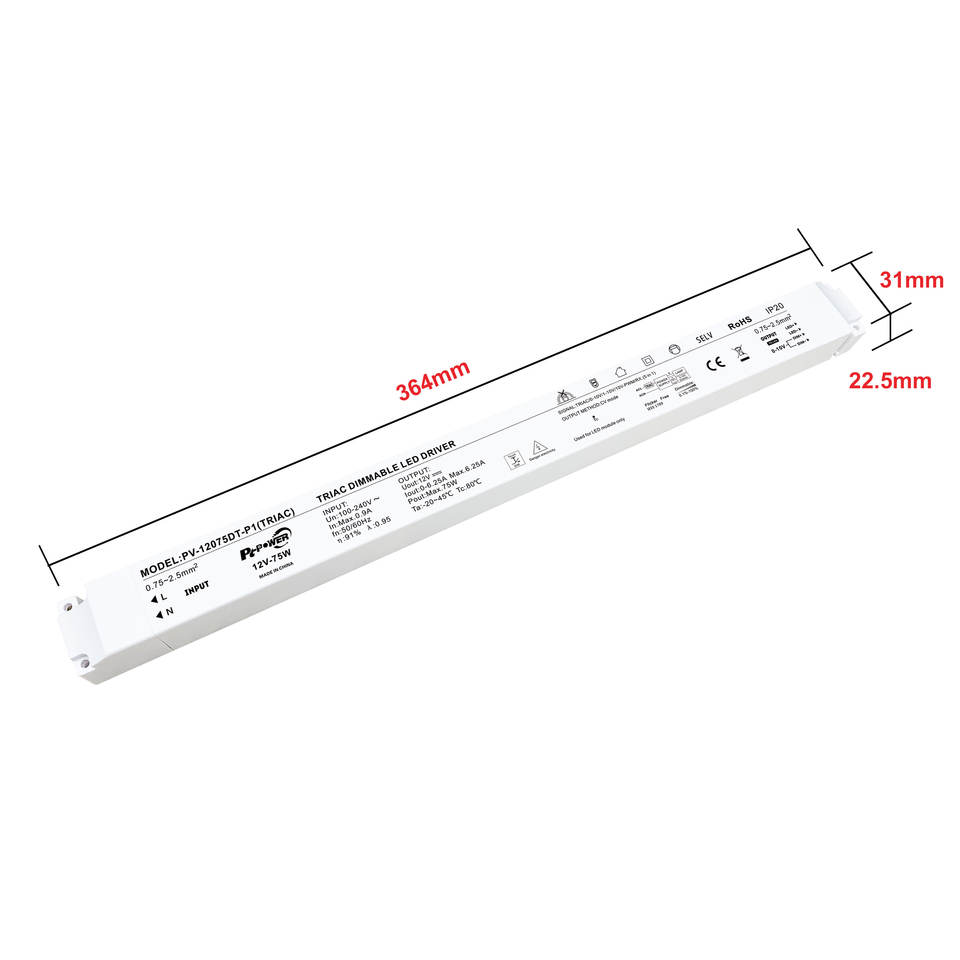

Size:364*31*22.5(L*W*H)
Safety standard:EN61347-1,EN61347-2-13
Protection:Short circuit, overload protection
Feature:Flicker free dimming from 0-100%
Working temperautre:-25°C~+45°C
