Attributes
LM2596Model Number
Inductor LeadedType
Power Core / Custom BrandingBrand Name
Buck Converters, SMPS, Solar Inverters, UPS SystemApplication
3W~15WRated Power
Surface Mount (SMT)Mounting Type
Place of Origin:China
D/C:2024+ (In Stock)
Supplier Type:Bulk Wholesale & Custom
Cross Reference:Bourns 2100HT, TDK VLF10045, Coilcraft SER2918L
Tolerance:±10% (Standard), ±20% (High Current)
Operating Temperature:-40°C ~ +125°C

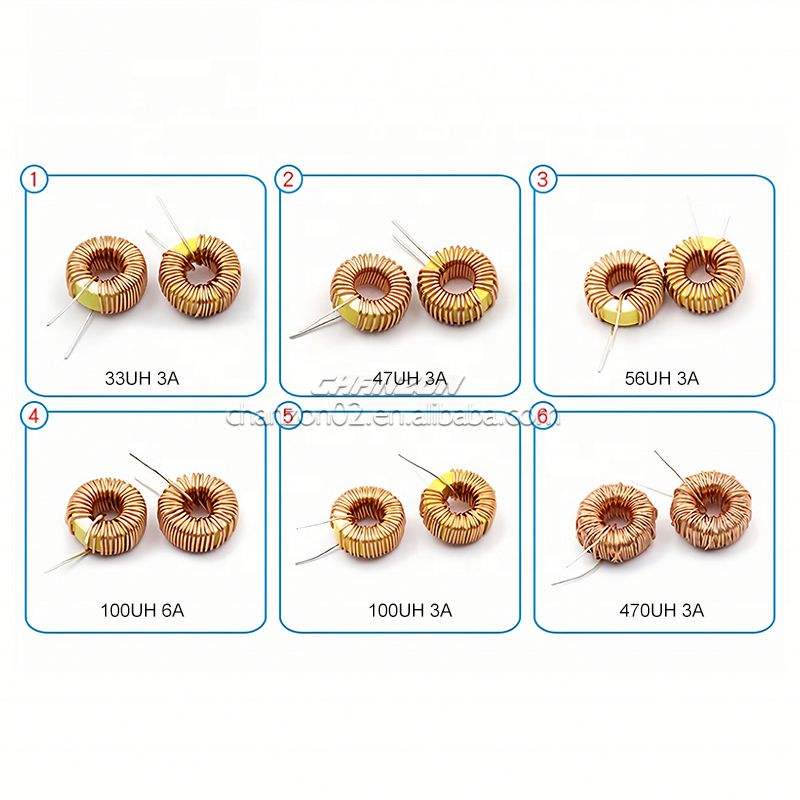

Package Type:Toroid
Resistance Tolerance:Wirewound
Temperature Coefficient:300 ppm/°C
Resistance:50Ω ~ 500Ω @ 1MHz
Media Available:AEC-Q200, RoHS, REACH
Frequency - Self Resonant:1MHz ~ 30MHz
Features:High Saturation Current, Low Core Loss
Height - Seated (max):3.2mm ~ 7.8mm
Function:Noise Filtering, Energy Storage
Inductance:1uH ~ 150uH
Q @ Freq:30 @ 1MHz, 50 @ 10MHz
Package / Case:NR6020 NR6028 NR6045 NR8040
Size / Dimension:4.4x4.1mm, 5.4x5.2mm, 6.5x6.3mm, 8.5x8.0mm
Heigh:2.0mm ~ 5.5mm
Number of Coils:Parallel/Series (Customizable)
Inductance - Connected In Parallel:3A ~ 10A
Current Rating - Parallel:3A ~ 10A
Current Saturation - Parallel:4.5A ~ 15A
DC Resistance (DCR) - Parallel:0.05Ω ~ 0.3Ω
DC Resistance (DCR) - Series:0.02Ω ~ 1.0Ω
Shielding:Full Metal Shield (Closed Magnetic Path)
Material - Core:Mn-Zn Ferrite (High Permeability)
Current Rating (amps):As per Datasheet
DC Resistance (DCR):Optimized for High Efficiency
Selling Units:Single item
Single package size:XX cm
