Complies with EU standards
Attributes
CNC Routermachine type
4number of axes
ATCNo. of Spindles
380 V, 1P/3P, 50HZ/60HZ, 240Vvoltage
3 Yearswarranty
Long Service Lifekey selling points
cnc or not:CNC
place of origin:Shandong, China
weight (kg):2000
range of spindle speed(r.p.m):6000 - 24000
positioning accuracy (mm):0.01
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):9
brand name:BCAMCNC
dimension(l*w*h):1300*2500*600mm
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Accessory Type:Dust collection, Scanner

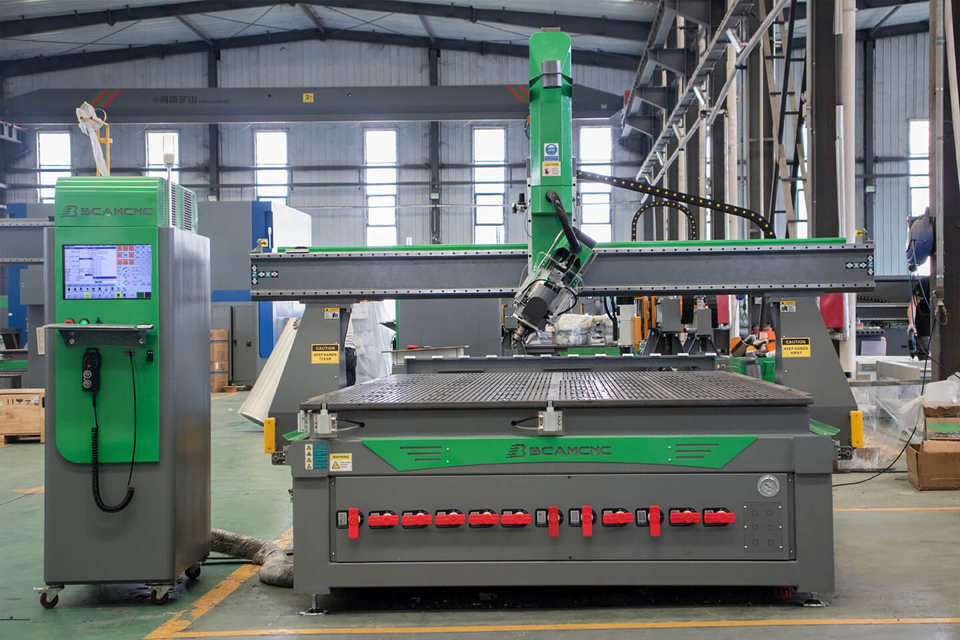

Product name:4 Axis Cnc Router Wood Carving Machine
Application:Wood Working
Keywords:3d Wood Cutting Cnc Machine
Control system:Taiwan Syntec 60WE control system

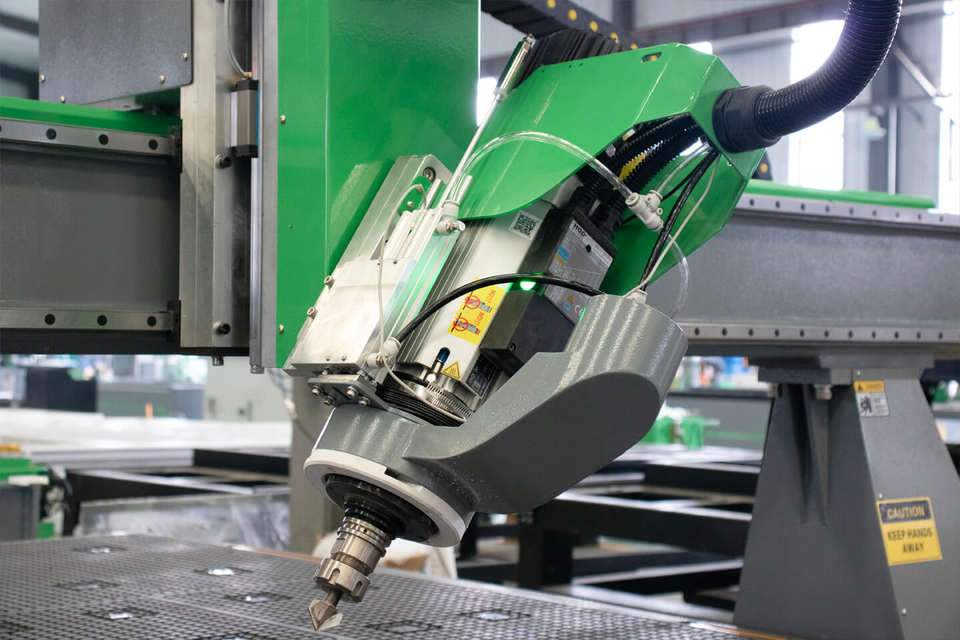

Spindle:9kw water cooling spindle ±90°
Function:Woodworking Furniture Making
Working area:1300x2500x600mm
Motor:Japan Yaskawa Servo Motor
Name:Wooden Mold Machine
Working table:Vacuum table+Intergrated T-solt table clamping System
Transmission:Taiwan TBI Ball Screw
Model:1325 Router Machine

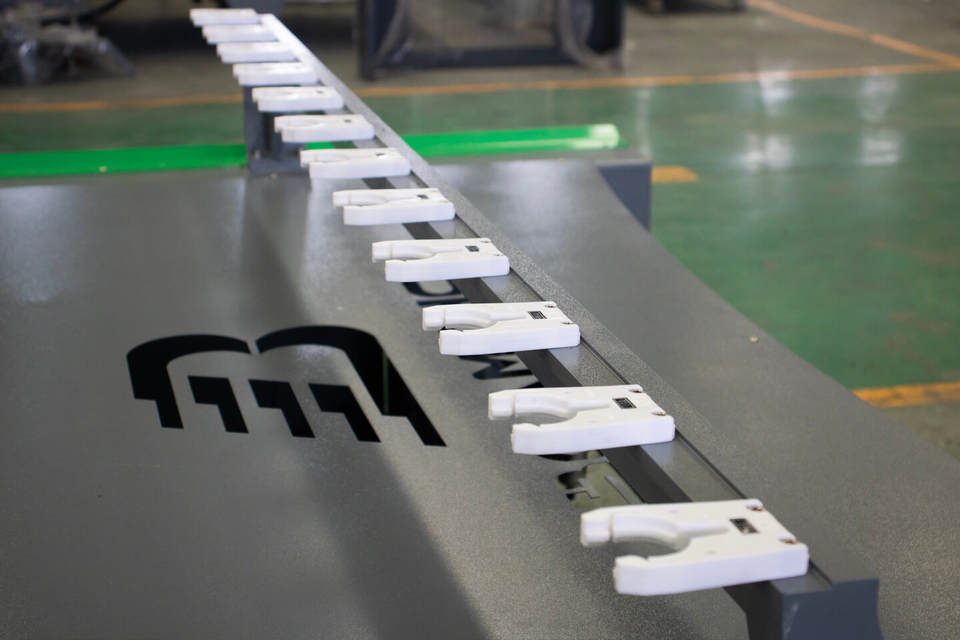

Type:Auto Tool Change
Cutting thickness:According materials
Working Voltage:AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ
Command Language:G Code
Software:Ucancam / ArtCam/TYPE3/Power Mill
Running Environment:Temperature: -20℃~45℃ Relative Humidity: 5%~75%
After-sales Service Provided:Service Machinery Overseas
