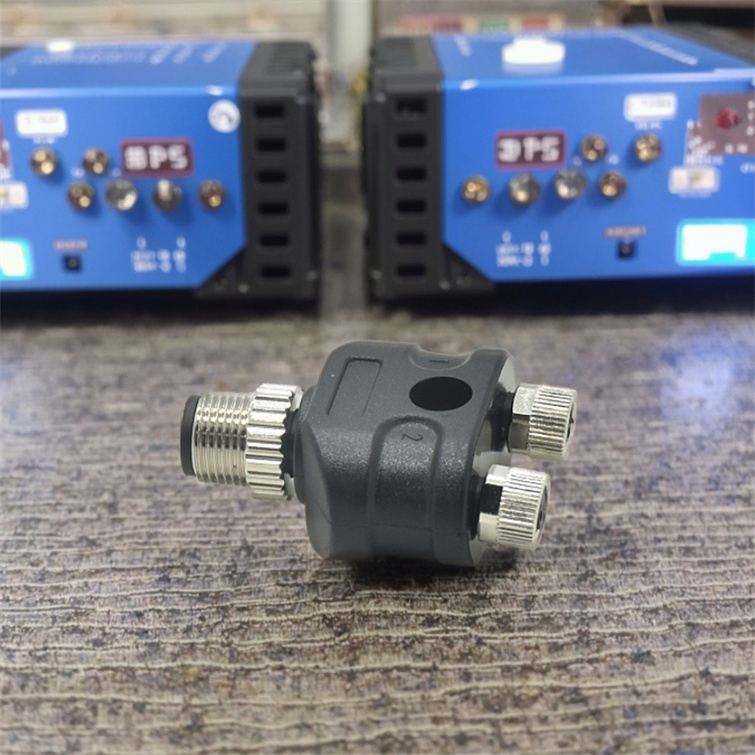

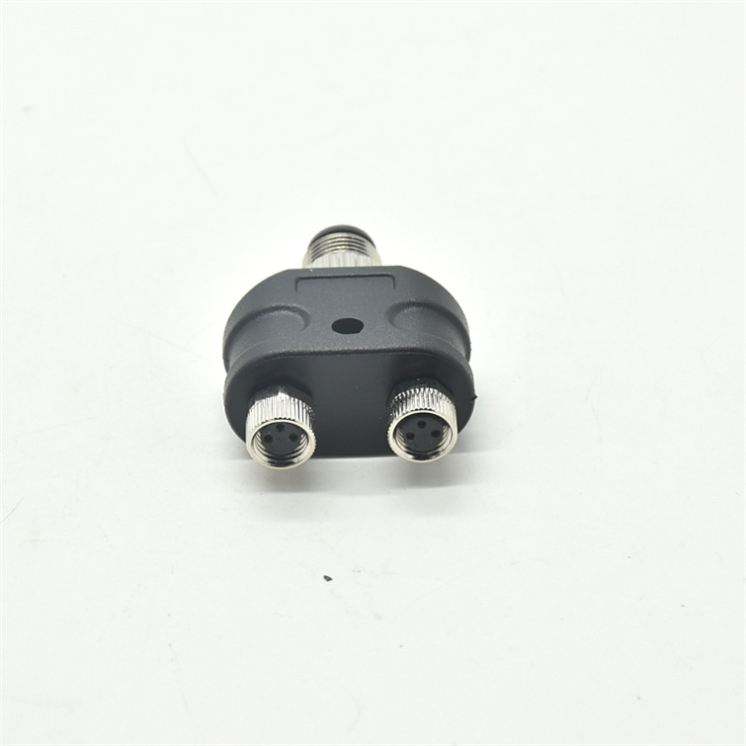

Y Type Adapter M12 Male to M8 Female Connector Waterproof DIN 4 Pin to 3 Pin Y Splitter Code Connector
RoHS compliant
RoHS compliant
Attributes
SignalApplication
Nickel Plated BrassContact Material
4 ARated Current
Guangdong, ChinaPlace of Origin
M12-A04MFModel Number
WestsaimBrand Name
Gender:Male & Female
Housing Material:Nickel Plated Brass
IP Level:Ip67
Shape:Round
Type:DIN
Item name:Y Adapter M12 A code 4 pin Male to M8 3 pin Female Connector
Waterproof rate:IP67
Rated Voltage:250VAC/VDC
Contact resistance:≤3mΩ
Mating cycles:>500 times
Wire gouge:AWG22-AWG24
Pin:3pin,4pin
Temperature range:-40℃ to +105℃
Flame retardant rating:UL94V-0
Keywords:Waterproof Power Cable Connector
Key attributes
Application
Signal
Contact Material
Nickel Plated Brass
Rated Current
4 A
Place of Origin
Guangdong, China
Model Number
M12-A04MF
Brand Name
Westsaim
Gender
Male & Female
Housing Material
Nickel Plated Brass
IP Level
Ip67
Shape
Round
Type
DIN
Item name
Y Adapter M12 A code 4 pin Male to M8 3 pin Female Connector
Waterproof rate
IP67
Rated Voltage
250VAC/VDC
Contact resistance
≤3mΩ
Mating cycles
>500 times
Wire gouge
AWG22-AWG24
Pin
3pin,4pin
Temperature range
-40℃ to +105℃
Flame retardant rating
UL94V-0
Keywords
Waterproof Power Cable Connector
