Attributes
CNC Routermachine type
3number of axes
SingleNo. of Spindles
380 Vvoltage
1 Yearwarranty
High Rigiditykey selling points
cnc or not:CNC
place of origin:Shandong, China
weight (kg):2300
range of spindle speed(r.p.m):0 - 18000
positioning accuracy (mm):0.05
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.05
Spindle Motor Power (kw):9
brand name:ZICAR
dimension(l*w*h):3100*2000*1700mm
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor

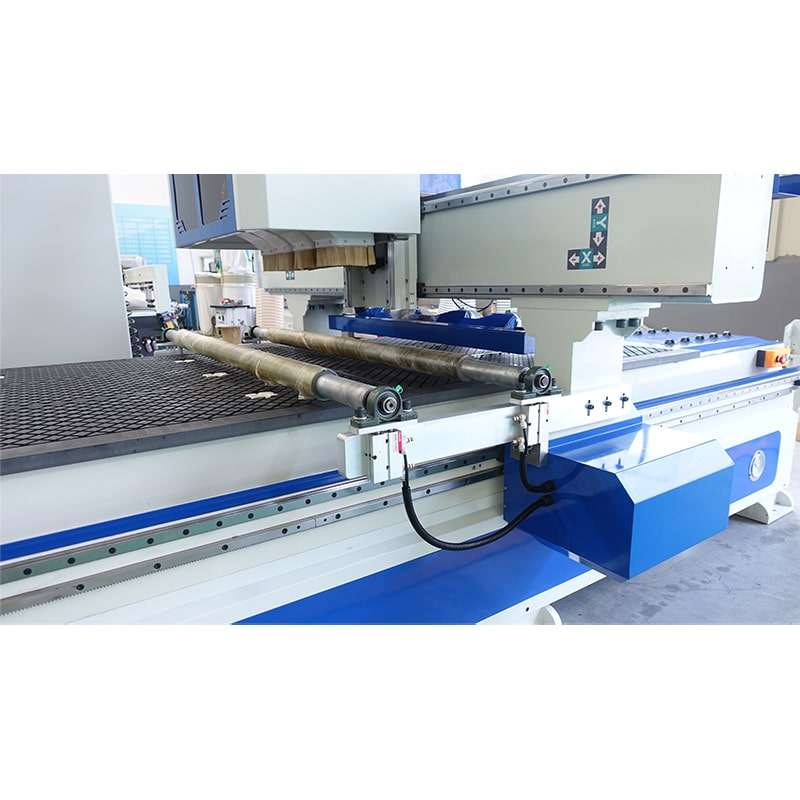

Product name:Wood Router Machine
Model:CR4
X,Y ,Z Structure:XY gear wheel, Z ball screw
Max. Power Consumption:≤20KW
Max. Rapid Travel Rate:45000mm/min
Max. Working Speed:25000mm/min
Spindle:2*4.5kw and 2*6.0kw air cooled spindle
Spindle Speed:0-18000rpm/min
Working voltage:AC220V/380V 50Hz/60Hz
Control System:Taiwan LNC2200 controller system
