Attributes
ZT-1200LS, M5Mounting Type
ZT-1001L,02L,05L,10LA,10L,20LC,20LModel Number
zhenzhong testBrand Name
AccelerometerUsage
Not haveOutput
ZT-1200LSDescription
Place of Origin:Jiangsu, China
Series:Accelerometer
Theory:Not have
Brand:Accelerometer
Amplifier Type:Not have
Voltage - Supply:Not have
Operating Temperature:-40~120 ℃
Frequency:1~10000 1~10000 0.5~5000 1~8000 0.5~5000 0.5~5000
Size / Dimension:12*21 15*29 15*29 13*19 18*26 18*26 18*26
Measuring Range:500 250 200 50 50 25 25
Interface:L5
Sensitivity (mV/g):10 20 50 100 100 200 200
Model ZT-:1001L 1002L 1005L 1010LA 1010L 1020LC 1020L
Sensitivity mV/g:10 20 50 100 100 200 200
Frequency range Hz (± 10%):1~10000 1~10000 0.5~5000 1~8000 0.5~5000 0.5~5000 0.5~5000
Range g:1~10000 1~10000 0.5~5000 1~8000 0.5~5000 0.5~5000 0.5~5000
Anti impact g:3000 2000 1000 1000 1000 1000 1000
Working temperature ℃:-40~120
Weight Gram:8 19 20 14 30 32 29
Size mm:12*21 15*29 15*29 13*19 18*26 18*26 18*26
Installation method:M5

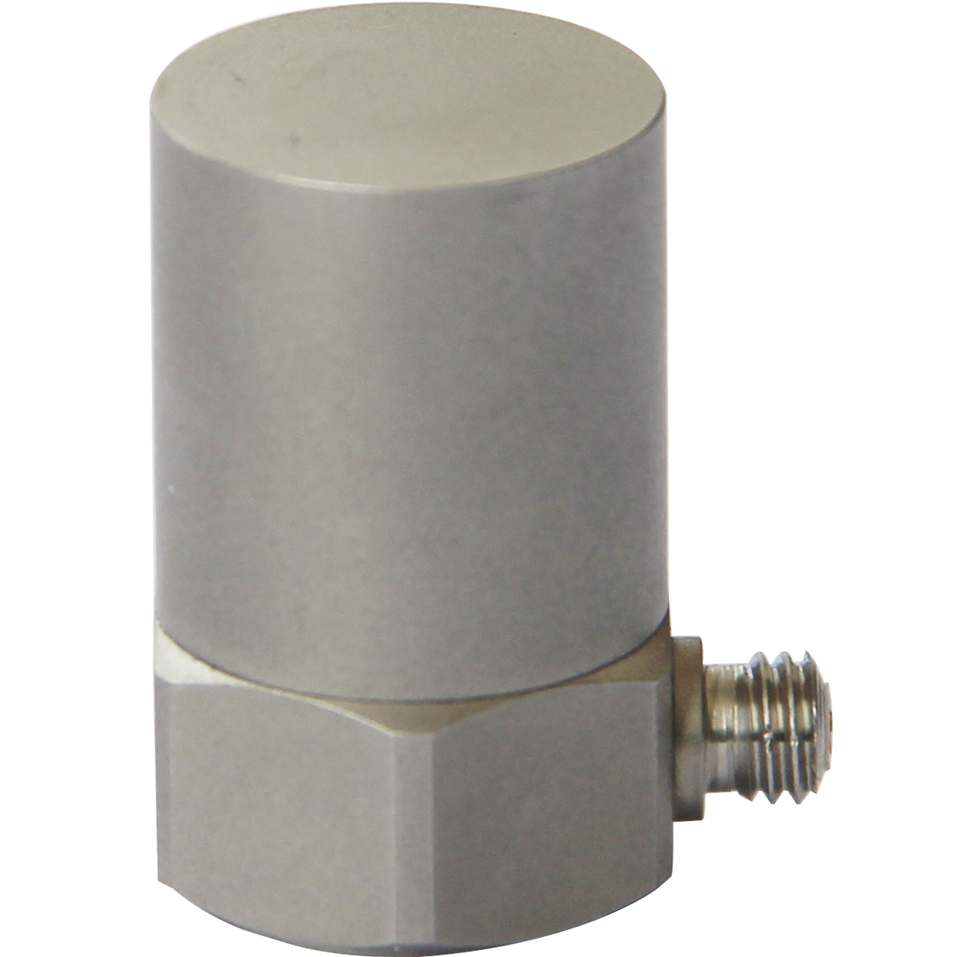

Output method:Top M5 Side end M5
Selling Units:Single item
